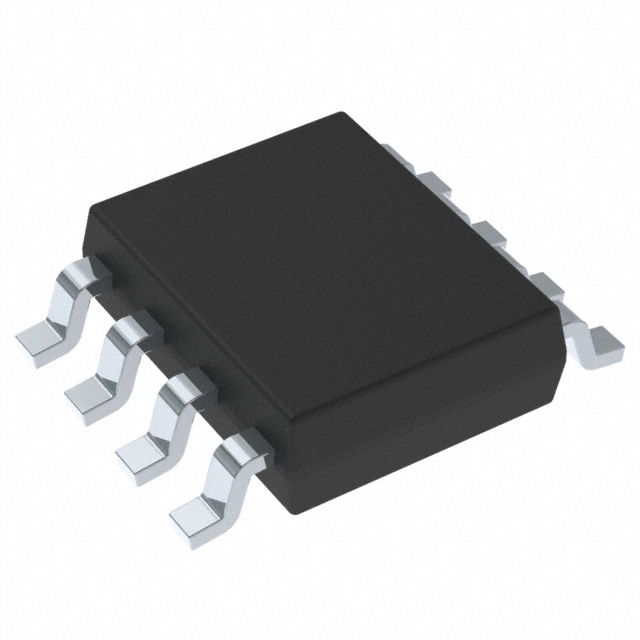

DRV8870LDDAR

PROTOTYPE

Manufacturer: Texas Instruments

Categories: Motor Drivers, Controllers

Quality Control: Learn More

Bipolar Motor Driver NMOS PWM 8-SO PowerPad

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Bulk
Download Free CAD Model:Link image
Technical Details:
PackagingBulk
Package / Case8-PowerSOIC (0.154"", 3.90mm Width)
Mounting TypeSurface Mount
FunctionDriver - Fully Integrated, Control and Power Stage
Current - Output3.6A
InterfacePWM
Operating Temperature-40°C ~ 150°C (TJ)
Output ConfigurationHalf Bridge (2)
Voltage - Supply6.5V ~ 45V
ApplicationsPrinter
TechnologyNMOS
Voltage - Load6.5V ~ 45V
Supplier Device Package8-SO PowerPad
Motor Type - StepperBipolar
Motor Type - AC, DCBrushed DC
Step Resolution-
