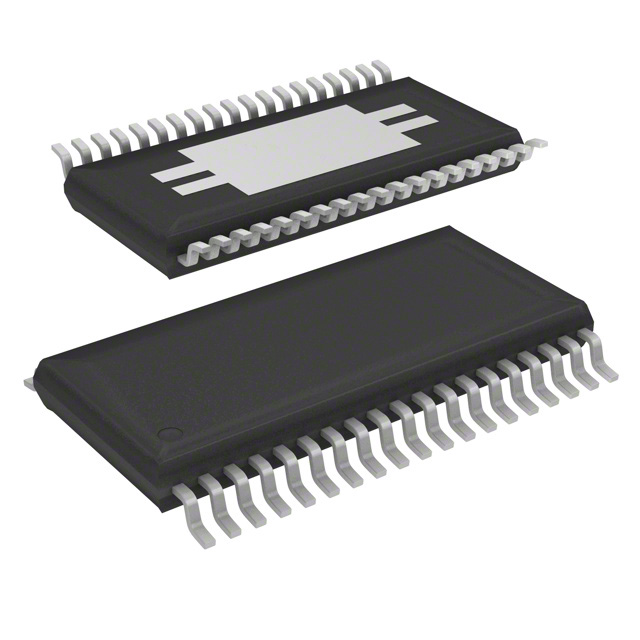

DRV8704DCP
IC MOTOR DRIVER 0V-5.3V 38HTSSOPManufacturer: Texas Instruments
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Texas Instruments DRV8704DCP is a high-performance NMOS PWM motor driver featuring SPI interface for control and configuration. This component is designed for brushed DC motors, offering precise commutation and direction management. It operates with a load voltage range of 8V to 52V and a supply voltage of 0V to 5.3V. The DRV8704DCP boasts an output configuration of four pre-driver half bridges, suitable for demanding applications. Its 38-HTSSOP package with a 38-PowerTFSOP (0.173"", 4.40mm Width) case allows for efficient surface mount integration. This device is utilized across various industries including industrial automation and automotive systems. The operating temperature range is -40°C to 85°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-PowerTFSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Function | Controller - Commutation, Direction Management |
| Current - Output | - |
| Interface | PWM, SPI |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Pre-Driver - Half Bridge (4) |
| Voltage - Supply | 0V ~ 5.3V |
| Applications | General Purpose |
| Technology | NMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | 38-HTSSOP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
