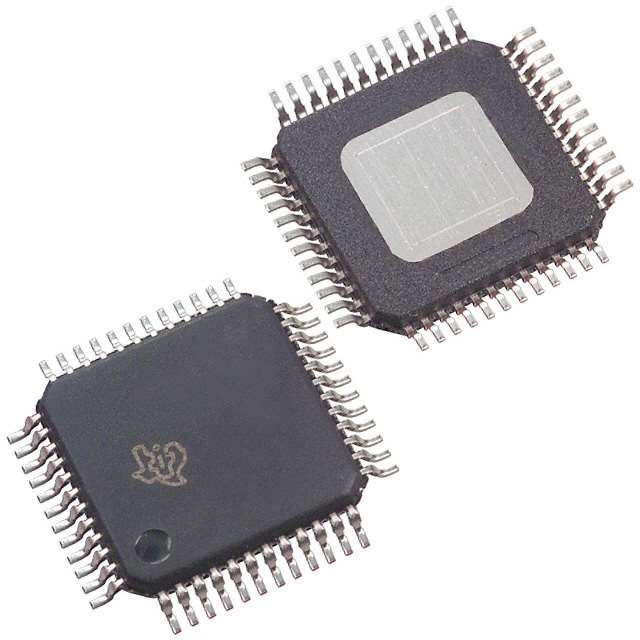

DRV8343HPHPRQ1
DRIVERManufacturer: Texas Instruments
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Multiphase Motor Driver NMOS Hardwired (HW) 48-HTQFP (7x7)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-PowerTQFP |
| Mounting Type | Surface Mount |
| Function | Controller - Commutation, Direction Management |
| Current - Output | 10mA |
| Interface | Hardwired (HW) |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Voltage - Supply | 5.5V ~ 60V |
| Applications | - |
| Technology | NMOS |
| Voltage - Load | 5.5V ~ 60V |
| Supplier Device Package | 48-HTQFP (7x7) |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
