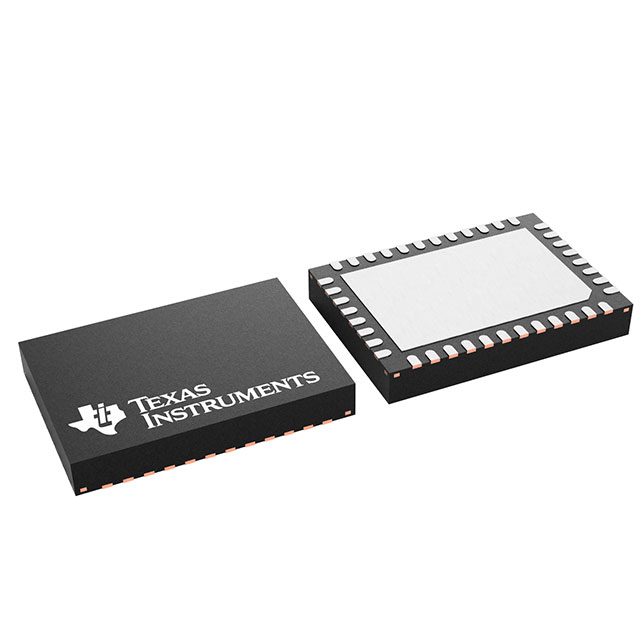

DRV8316TRGFR
40-V MAX 8-A PEAK 3-PHASE MOTORManufacturer: Texas Instruments
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Multiphase Motor Driver Power MOSFET PWM 40-VQFN (7x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 8A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 4.5V ~ 35V |
| Applications | Camera, Printer |
| Technology | Power MOSFET |
| Voltage - Load | 4.5V ~ 35V |
| Supplier Device Package | 40-VQFN (7x5) |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
