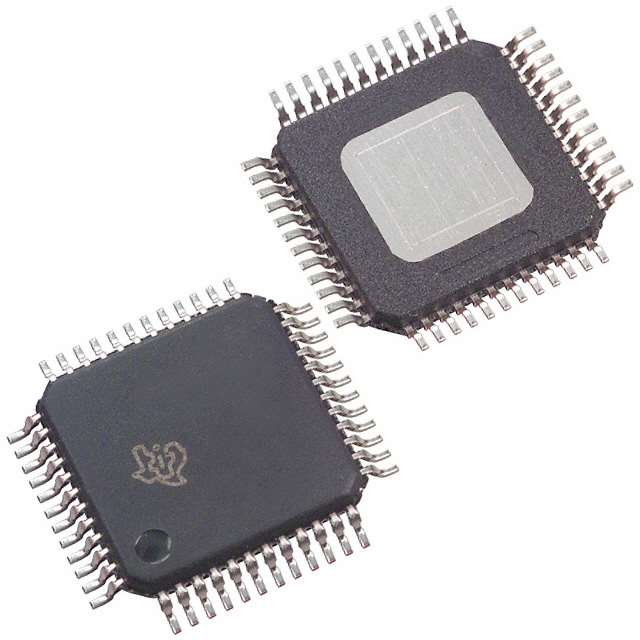

DRV8305NPHPR
IC MTR DRV MULTI 4.4-45V 48HTQFPManufacturer: Texas Instruments
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Multiphase Motor Driver Power MOSFET PWM, SPI 48-HTQFP (7x7)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-PowerTQFP |
| Mounting Type | Surface Mount |
| Function | Controller - Commutation, Direction Management |
| Current - Output | - |
| Interface | PWM, SPI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Voltage - Supply | 4.4V ~ 45V |
| Applications | Three-Phase BLDC, PMSM Motors |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | 48-HTQFP (7x7) |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | - |
| Step Resolution | - |
