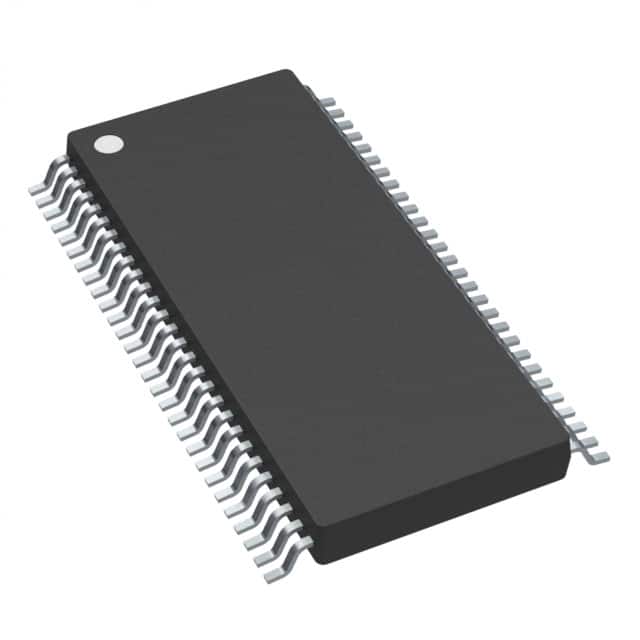

DRV8301DCAR
IC MOTOR DRIVER 6V-60V 56HTSSOPManufacturer: Texas Instruments
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Motor Driver Power MOSFET SPI 56-HTSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-PowerTFSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Function | Controller - Commutation, Direction Management |
| Current - Output | - |
| Interface | SPI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Voltage - Supply | 6V ~ 60V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | 56-HTSSOP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
