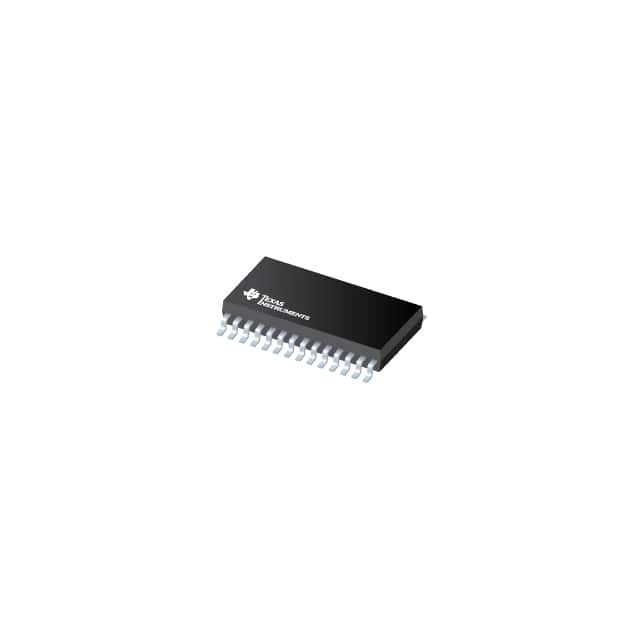

DRV8243HQDGQRQ1
AUTOMOTIVE 40-V, 12-A H-BRIDGE DManufacturer: Texas Instruments
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Bipolar Motor Driver Bi-CMOS Hardwired (HW) 28-HTSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-PowerTSSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 12A |
| Interface | Hardwired (HW) |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.5V ~ 35V |
| Applications | - |
| Technology | Bi-CMOS |
| Voltage - Load | 4.5V ~ 35V |
| Supplier Device Package | 28-HTSSOP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy
DRV8411RTER
1.65-V TO 11-V, 4-A, DUAL H-BRID
DRV8880RHRR
IC MTR DRV BIPOLAR 6.5-45V 28QFN

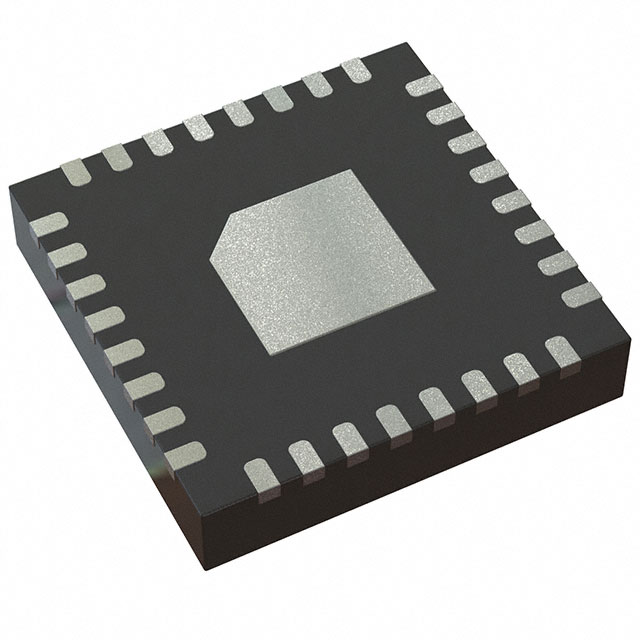

DRV8703QRHBRQ1
