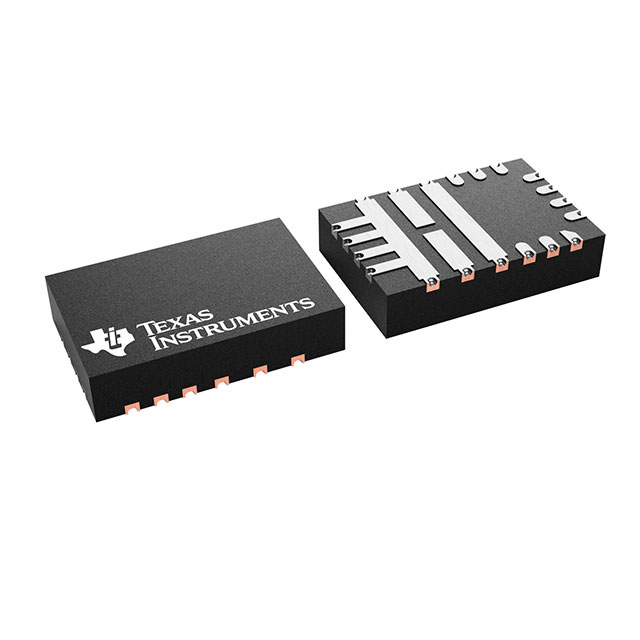

DRV8143HQRXYRQ1
AUTOMOTIVE 40-V, 20-A HALF-BRIDGManufacturer: Texas Instruments
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Bipolar Motor Driver Bi-CMOS Hardwired (HW) 14-VQFN-HR (3x4.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-VFQFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 20A |
| Interface | Hardwired (HW) |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 35V |
| Applications | - |
| Technology | Bi-CMOS |
| Voltage - Load | 4.5V ~ 35V |
| Supplier Device Package | 14-VQFN-HR (3x4.5) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
