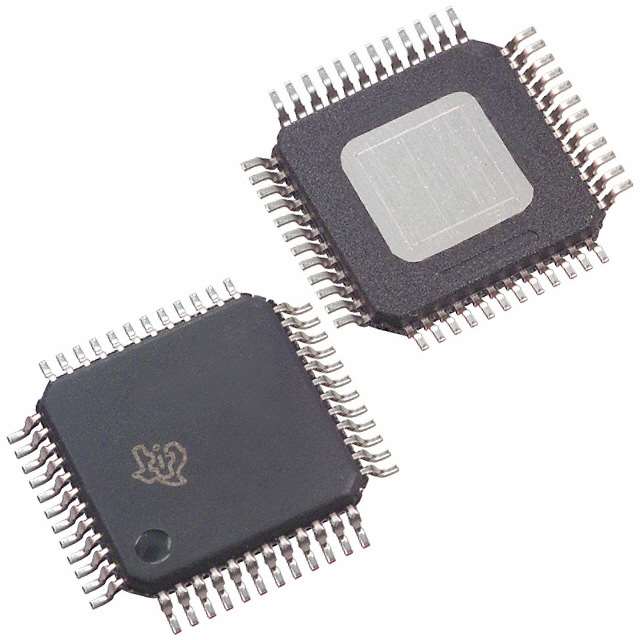

DRV3220QPHPRQ1
IC MOTOR DRIVER 48HTQFPManufacturer: Texas Instruments
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Bipolar Motor Driver Power MOSFET PWM 48-HTQFP (7x7)
Additional Information
Series: Functional Safety (FuSa)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-PowerTQFP |
| Mounting Type | Surface Mount |
| Function | Driver |
| Current - Output | 1A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 4.75V ~ 60V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 5.15V ~ 5.45V |
| Supplier Device Package | 48-HTQFP (7x7) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
