XAM69A98ATNGHAALY
IC MPU 2GHZ 1414FCBGAManufacturer: Texas Instruments
Categories: Microprocessors
Quality Control: Learn More

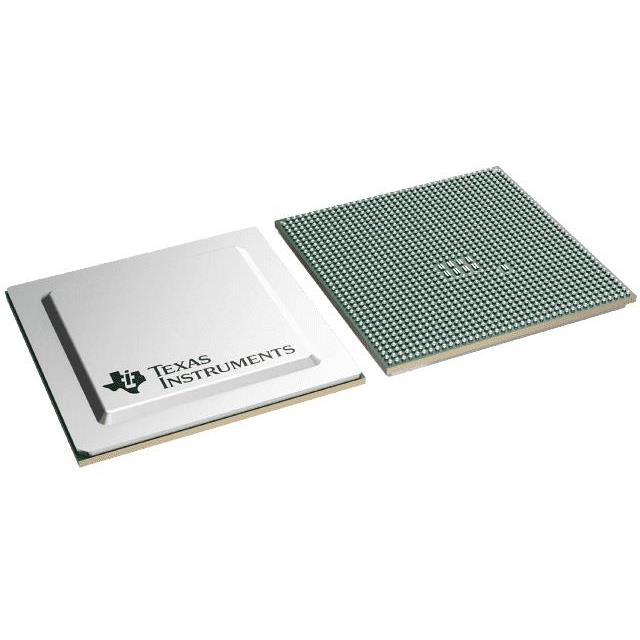

ARM® Cortex®-A72 Microprocessor IC AM69Ax 8 Core, 64-Bit 2GHz 1414-FCBGA (31x31)
Additional Information
Series: AM69AxRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | 1414-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 2GHz |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Core Processor | ARM® Cortex®-A72 |
| Voltage - I/O | 1.1V, 1.8V, 3.3V |
| Supplier Device Package | 1414-FCBGA (31x31) |
| Ethernet | 10/100/1000Mbps (2), 2.5Gbps (8) |
| USB | USB 3.1 (1) |
| Number of Cores/Bus Width | 8 Core, 64-Bit |
| Co-Processors/DSP | ARM® Cortex®-R5F, Multimedia; GPU |
| RAM Controllers | LPDDR4 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | eDP, MIPI-DSI |
| Security Features | 3DES, AES, Cryptography, DRBG, ECC, MD5, PKA, Random Number Generator, RSA, Secure Boot, SHA, SMS |
| SATA | - |
| Additional Interfaces | CANbus, DMA, GPIO, I2C, MMC/SD, PCIe, QSPI, SPI, UART/USART |
