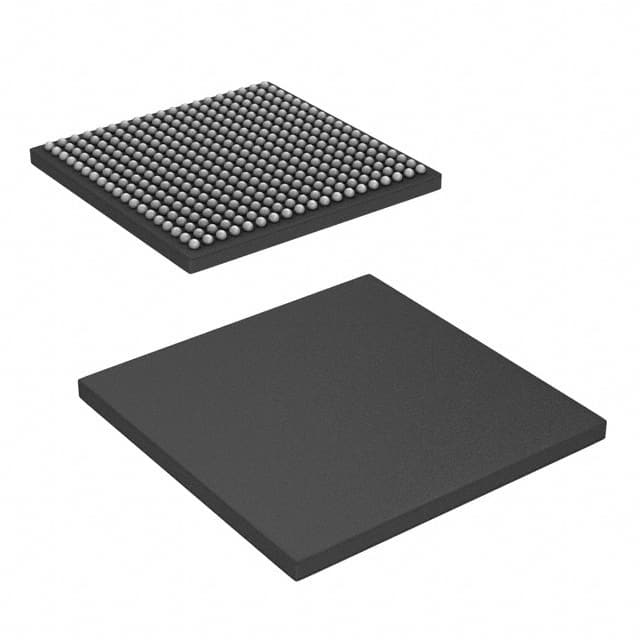

OMAPL138BZWTA3
IC MPU OMAP-L1X 375MHZ 361NFBGAManufacturer: Texas Instruments
Categories: Microprocessors
Quality Control: Learn More
Texas Instruments OMAP-L1x series OMAPL138BZWTA3 is a 375MHz, 32-bit, single-core ARM926EJ-S microprocessor. Housed in a 361-NFBGA (16x16) package, this component features a comprehensive set of peripherals including HPI, I2C, McASP, McBSP, MMC/SD, SPI, UART, and dual USB interfaces (1.1 + PHY and 2.0 + PHY). It also supports 10/100Mbps Ethernet and SATA 3Gbps connectivity. For enhanced processing capabilities, it incorporates a C674x DSP core and a CP15 system control co-processor. Additional features include an LCD controller, SDRAM controllers, and robust security features such as boot security and cryptography. This device operates within a temperature range of -40°C to 105°C (TJ) and supports 1.8V and 3.3V I/O voltages. The OMAPL138BZWTA3 is suitable for applications in industrial automation, medical imaging, and robust communication systems.
Additional Information
Series: OMAP-L1xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 361-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 375MHz |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Core Processor | ARM926EJ-S |
| Voltage - I/O | 1.8V, 3.3V |
| Supplier Device Package | 361-NFBGA (16x16) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 1.1 + PHY (1), USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Signal Processing; C674x, System Control; CP15 |
| RAM Controllers | SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD |
| Security Features | Boot Security, Cryptography |
| SATA | SATA 3Gbps (1) |
| Additional Interfaces | HPI, I2C, McASP, McBSP, MMC/SD, SPI, UART |
