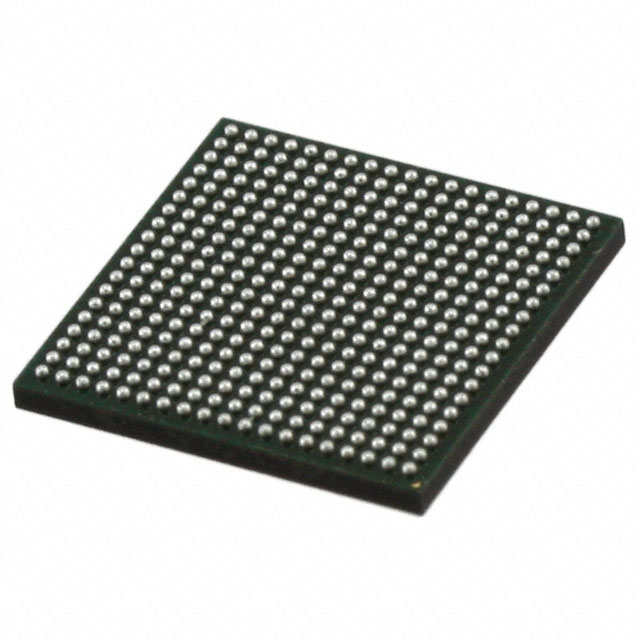

OMAPL138BZCE3
IC MPU OMAP-L1X 375MHZ 361NFBGAManufacturer: Texas Instruments
Categories: Microprocessors
Quality Control: Learn More
Texas Instruments OMAP-L1x series ARM926EJ-S microprocessor, part number OMAPL138BZCE3. This 32-bit, single-core device operates at 375MHz and features a 361-NFBGA (13x13) package. It integrates a C674x DSP for signal processing and CP15 for system control, along with an LCD controller. Connectivity options include 10/100Mbps Ethernet, SATA 3Gbps, USB 1.1 + PHY, USB 2.0 + PH, HPI, I2C, McASP, McBSP, MMC/SD, SPI, and UART interfaces. RAM support is provided for SDRAM. Security features include Boot Security and Cryptography. This component is suitable for applications in industrial automation, medical imaging, and embedded systems. Operating temperature range is 0°C to 90°C (TJ).
Additional Information
Series: OMAP-L1xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 361-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 375MHz |
| Operating Temperature | 0°C ~ 90°C (TJ) |
| Core Processor | ARM926EJ-S |
| Voltage - I/O | 1.8V, 3.3V |
| Supplier Device Package | 361-NFBGA (13x13) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 1.1 + PHY (1), USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Signal Processing; C674x, System Control; CP15 |
| RAM Controllers | SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD |
| Security Features | Boot Security, Cryptography |
| SATA | SATA 3Gbps (1) |
| Additional Interfaces | HPI, I2C, McASP, McBSP, MMC/SD, SPI, UART |
