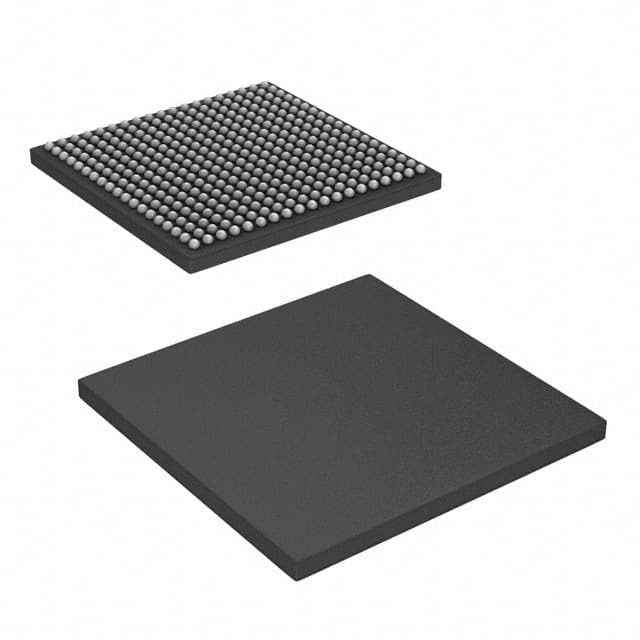

OMAPL132EZWTA2R
IC MPU OMAP-L1X 200MHZ 361NFBGAManufacturer: Texas Instruments
Categories: Microprocessors
Quality Control: Learn More
Texas Instruments OMAP-L1x series OMAPL132EZWTA2R is a 32-bit ARM926EJ-S microprocessor featuring a single core operating at 200MHz. This component is housed in a 361-NFBGA (16x16) package and supports surface mount installation. Key interfaces include AC97, I2C, I2S, McASP, McBSP, MMC/SD/SDIO, SPI, and UART, along with a 10/100Mbps Ethernet port and USB 2.0 with an integrated PHY. Memory support extends to LPDDR and DDR2 RAM controllers. Co-processing capabilities are provided by a Signal Processing C674x unit and a CP15 system control unit. Operating within a temperature range of -40°C to 105°C (TJ), this device is suitable for applications in industrial automation, medical imaging, and digital signage.
Additional Information
Series: OMAP-L1xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 361-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 200MHz |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Core Processor | ARM926EJ-S |
| Voltage - I/O | 1.8V, 3.3V |
| Supplier Device Package | 361-NFBGA (16x16) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Signal Processing; C674x, System Control; CP15 |
| RAM Controllers | LPDDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | AC97, I2C, I2S, McASP, McBSP, MMC/SD/SDIO, SPI, UART |
