OMAP3515ECUSA
OMAP3515 - SITARA PROCESSOR: ARMManufacturer: Texas Instruments
Categories: Microprocessors
Quality Control: Learn More

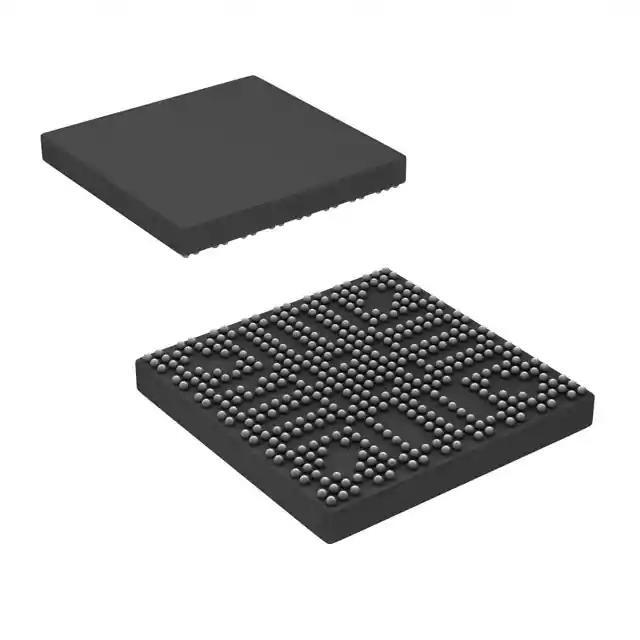

ARM® Cortex®-A8 Microprocessor IC OMAP-35xx 1 Core, 32-Bit 600MHz 423-FC/CSP (16x16)
Additional Information
Series: OMAP-35xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 423-LFBGA, FCCSPBGA |
| Mounting Type | Surface Mount |
| Speed | 600MHz |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Core Processor | ARM® Cortex®-A8 |
| Voltage - I/O | 1.8V, 3V |
| Supplier Device Package | 423-FC/CSP (16x16) |
| Ethernet | - |
| USB | USB 1.x (3), USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | GPU, Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | LCD |
| Security Features | Boot Security |
| SATA | - |
| Additional Interfaces | HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART |
