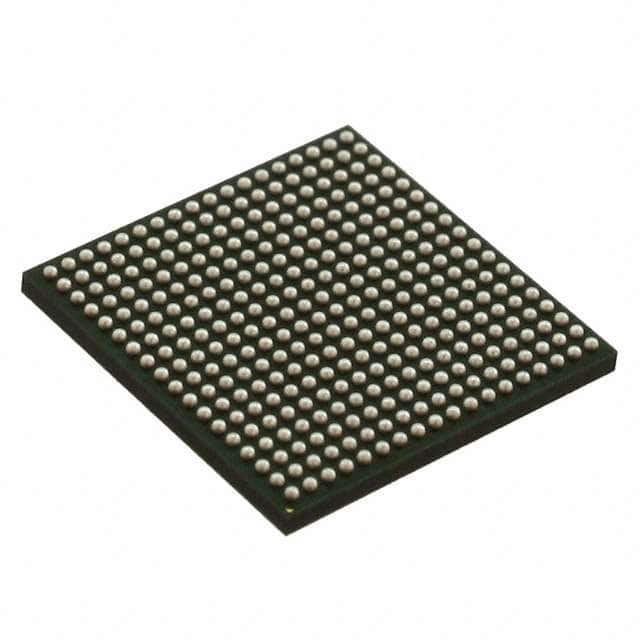

AM3354BZCZ100
IC MPU SITARA 1.0GHZ 324NFBGAManufacturer: Texas Instruments
Categories: Microprocessors
Quality Control: Learn More
Texas Instruments Sitara™ AM3354BZCZ100 is a 32-bit, single-core ARM Cortex-A8 microprocessor operating at 1.0GHz. This component features a 324-NFBGA (15x15) package and supports LPDDR, DDR2, DDR3, and DDR3L RAM controllers. On-chip peripherals include dual 10/100/1000Mbps Ethernet ports, two USB 2.0 ports with PHY, CAN, I2C, McASP, McSPI, MMC/SD/SDIO, and UART interfaces. It also offers display and interface controllers for LCD and touchscreen functionality, along with multimedia co-processors and NEON SIMD acceleration. Graphics acceleration capabilities are integrated. The device operates within a temperature range of 0°C to 90°C (TJ) and supports 1.8V and 3.3V I/O voltages. Security features include cryptography and a random number generator. This processor is suitable for industrial automation, gateway, and human-machine interface applications.
Additional Information
Series: Sitara™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 324-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | 0°C ~ 90°C (TJ) |
| Core Processor | ARM® Cortex®-A8 |
| Voltage - I/O | 1.8V, 3.3V |
| Supplier Device Package | 324-NFBGA (15x15) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR, DDR2, DDR3, DDR3L |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | LCD, Touchscreen |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | CAN, I2C, McASP, McSPI, MMC/SD/SDIO, UART |
