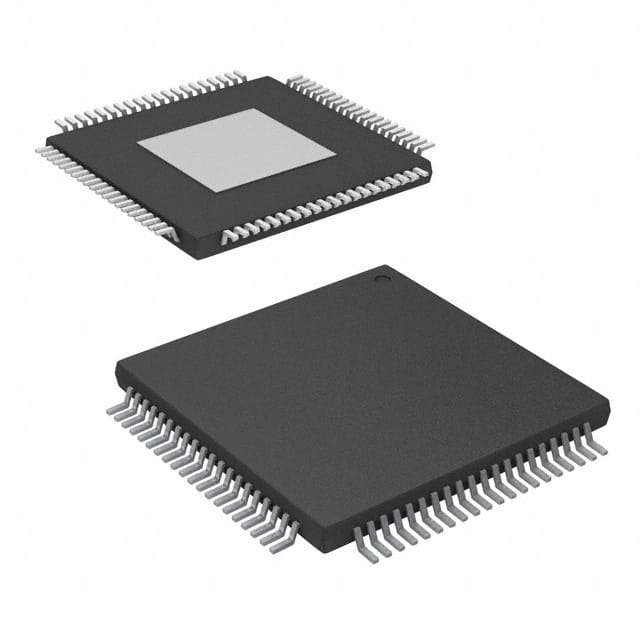

TMX320F28069PFPA
IC MCU 32BIT 256KB FLASH 80HTQFPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments TMX320F28069PFPA is a 32-bit C2000™ C28x Piccolo™ microcontroller featuring a single-core C28x processor operating at 80MHz. This device offers 256KB of FLASH program memory (128K x 16) and 50KB of RAM. Connectivity options include CANbus, I2C, McBSP, SCI, SPI, and UART/USART. Integrated peripherals include DMA, Brown-out Detect/Reset, POR, PWM, and WDT. It also provides 12x12-bit Analog-to-Digital converters. The TMX320F28069PFPA is housed in an 80-HTQFP (12x12) exposed pad package, suitable for surface mounting. Its operating temperature range is -40°C to 85°C. This component is widely utilized in industrial automation, motor control, and power systems applications.
Additional Information
Series: C2000™ C28x Piccolo™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 80-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Program Memory Size | 256KB (128K x 16) |
| RAM Size | 50K x 16 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | C28x |
| Data Converters | A/D 12x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.995V |
| Connectivity | CANbus, I2C, McBSP, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 80-HTQFP (12x12) |
| Number of I/O | 40 |
| Programmable | Not Verified |
