TMX320F28035RSHS
IC MCU 32BIT 128KB FLASH 56VQFNManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
The Texas Instruments TMX320F28035RSHS is a 32-bit C2000™ C28x Piccolo™ microcontroller featuring a single-core C28x processor operating at 60MHz. This device offers 128KB (64K x 16) of FLASH program memory and 10KB (non-ECC) of RAM. It includes a 13-channel 12-bit Analog-to-Digital converter and various peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Connectivity options include CANbus, I2C, LINbus, SCI, SPI, and UART/USART. With 26 general-purpose I/O pins, an internal oscillator, and a voltage supply range of 1.71V to 1.995V, this microcontroller is suitable for applications requiring precise control. The TMX320F28035RSHS is housed in a 56-VQFN (7x7) exposed pad package suitable for surface mounting and operates within an ambient temperature range of -40°C to 125°C. This component is widely utilized in industrial automation, motor control, and power systems.
Additional Information
Series: C2000™ C28x Piccolo™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |

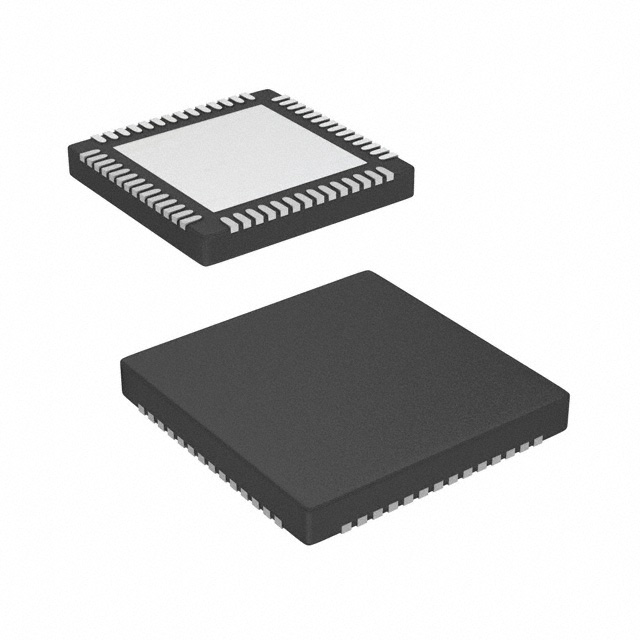

| Package / Case | 56-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 60MHz |
| Program Memory Size | 128KB (64K x 16) |
| RAM Size | 10K x 16 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | C28x |
| Data Converters | A/D 13x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.995V |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 56-VQFN (7x7) |
| Number of I/O | 26 |
| Programmable | Not Verified |
