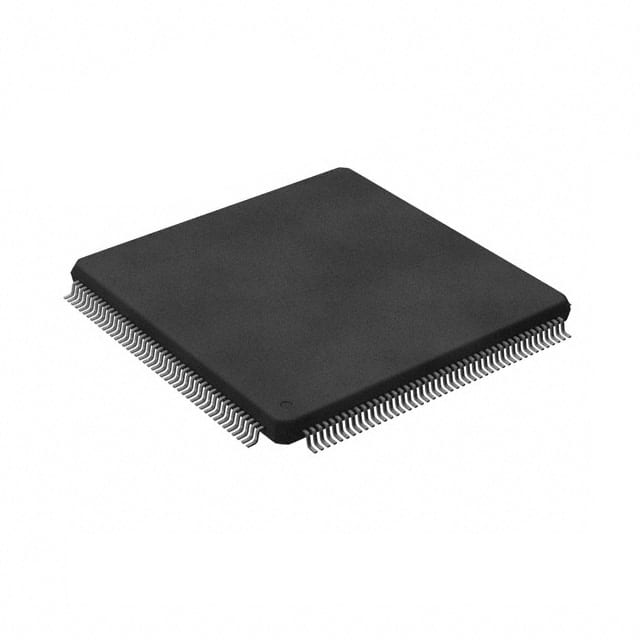

TMS320R2812PGFQ
IC MCU 32BIT ROMLESS 176LQFPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments TMS320R2812PGFQ, a C2000™ C28x Fixed-Point microcontroller, features a 32-bit single-core C28x processor operating at 150MHz. This ROMless device, packaged in a 176-LQFP (24x24), offers 20K x 16 RAM and 56 I/O pins. Integrated peripherals include DMA, POR, PWM, and WDT. Connectivity options encompass CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, and UART/USART. Data conversion is supported by 16x12b A/D converters. The operating temperature range is -40°C to 125°C, with a supply voltage of 1.81V to 2V. This component is commonly utilized in industrial automation, motor control, and power systems applications.
Additional Information
Series: C2000™ C28x Fixed-PointRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 150MHz |
| Program Memory Size | - |
| RAM Size | 20K x 16 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | C28x |
| Data Converters | A/D 16x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.81V ~ 2V |
| Connectivity | CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 56 |
| Programmable | Not Verified |
