TMS320LF2407APGEA
IC MCU 16BIT 64KB FLASH 144LQFPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments TMS320LF2407APGEA is a 16-bit microcontroller from the C2000™ C24x series. This C2xx DSP core operates at 40MHz, featuring 64KB (32K x 16) of FLASH program memory and 5K x 8 of RAM. The device offers 41 general-purpose I/O pins and includes essential peripherals such as POR, PWM, and WDT. Connectivity options are extensive, supporting CANbus, EBI/EMI, SCI, SPI, and UART/USART interfaces. It also integrates a 16x10-bit Analog-to-Digital converter. The TMS320LF2407APGEA is housed in a 144-LQFP (20x20) surface-mount package and operates within a voltage range of 3V to 3.6V, with an ambient temperature range of -40°C to 85°C. This component is widely utilized in industrial automation, motor control, and power systems applications requiring high-performance digital signal processing in a compact form factor.
Additional Information
Series: C2000™ C24x 16-BitRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 64KB (32K x 16) |
| RAM Size | 5K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | C2xx DSP |
| Data Converters | A/D 16x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 144-LQFP (20x20) |
| Number of I/O | 41 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
TMS320LF2402PGS
IC MCU 16BIT 16KB FLASH 64QFP

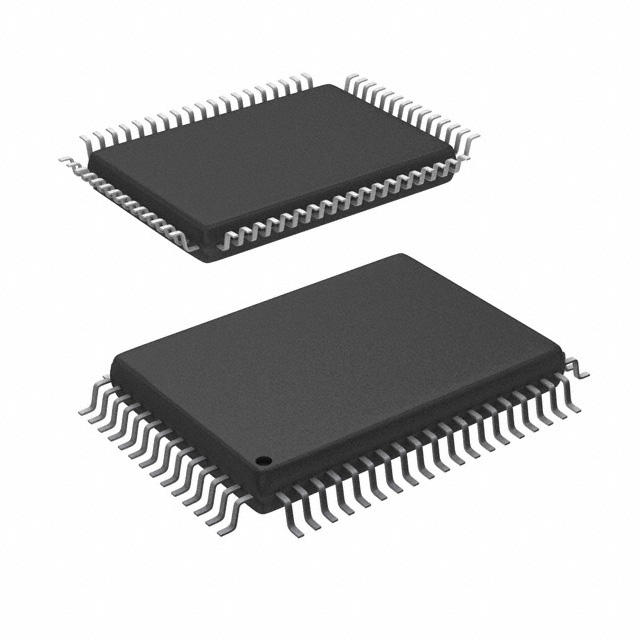

LF2402APGA-GREE
