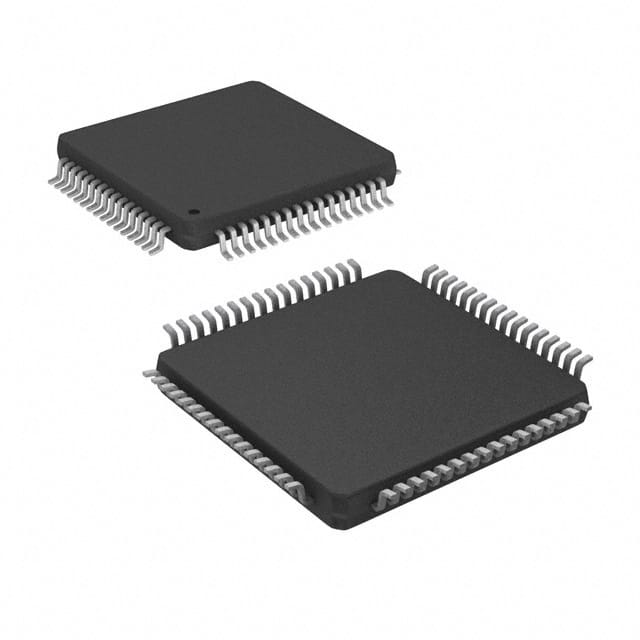

TMS320LF2403APAGA
IC MCU 16BIT 32KB FLASH 64TQFPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments TMS320LF2403APAGA is a 16-bit C2xx DSP microcontroller from the C2000™ C24x family. This device operates at 40MHz, featuring 32KB of FLASH program memory and 2KB of RAM. It includes an 8-channel, 10-bit Analog-to-Digital converter and various peripherals such as Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). Connectivity options include CANbus, SCI, SPI, and UART/USART interfaces. With 21 general-purpose I/O pins, an internal oscillator, and a voltage supply range of 3V to 3.6V, this surface-mount component is suitable for demanding applications. The TMS320LF2403APAGA is housed in a 64-TQFP package and operates within an ambient temperature range of -40°C to 85°C. This microcontroller is commonly utilized in industrial automation, motor control, and power systems.
Additional Information
Series: C2000™ C24x 16-BitRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-TQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 32KB (16K x 16) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | C2xx DSP |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, SCI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 64-TQFP (10x10) |
| Number of I/O | 21 |
| Programmable | Verified |
