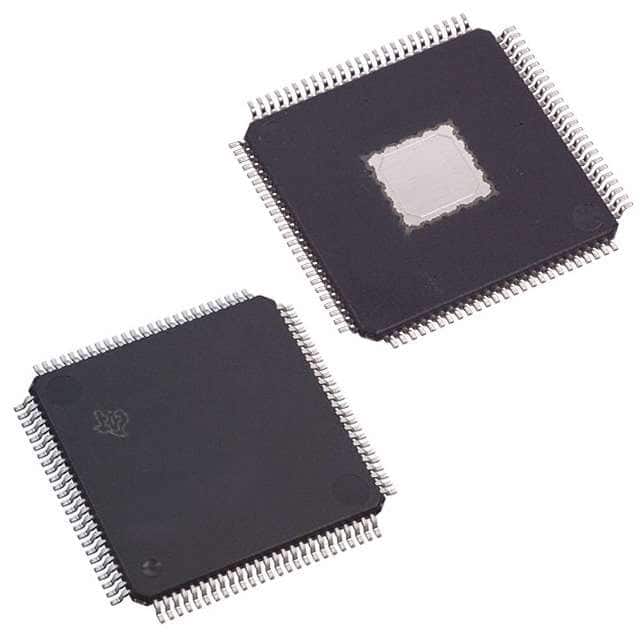

TMS320F28377DPTPQ
IC MCU 32BIT 1MB FLASH 176HLQFPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments TMS320F28377DPTPQ is a 32-bit dual-core C2000™ C28x Delfino™ microcontroller designed for high-performance applications, including those requiring functional safety. This device features a 200MHz core clock speed and 1MB of FLASH program memory (512K x 16), complemented by 102KB of RAM. On-chip peripherals include DMA, POR, PWM, and WDT. Data conversion capabilities are robust with 20x12-bit and 9x16-bit ADCs and 3x12-bit DACs. Connectivity options encompass CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, uPP, UART/USART, and USB. This AEC-Q100 qualified component operates within an industrial temperature range of -40°C to 125°C and is housed in a 176-HLQFP (24x24) surface-mount package. Its architecture is suitable for demanding sectors such as automotive and industrial automation.
Additional Information
Series: C2000™ C28x Delfino™, Functional Safety (FuSa)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 176-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 200MHz |
| Program Memory Size | 1MB (512K x 16) |
| RAM Size | 102K x 16 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | C28x |
| Data Converters | A/D 20x12b, 9x16b; D/A 3x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 3.47V |
| Connectivity | CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, uPP, UART/USART, USB |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 176-HLQFP (24x24) |
| Grade | Automotive |
| Number of I/O | 97 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
