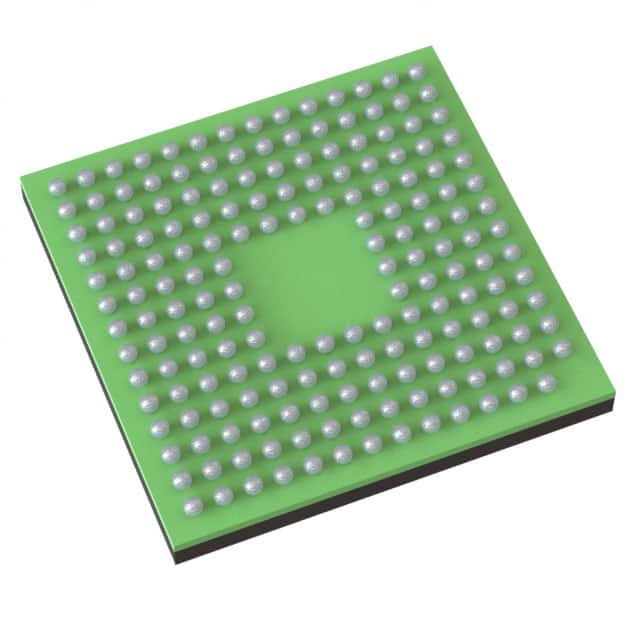

TMS320F2812ZAYA
IC MCU 32BIT 256KB FLSH 179NFBGAManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments TMS320F2812ZAYA is a 32-bit C28x™ C28x Fixed-Point microcontroller. This single-core device operates at 150MHz and features 256KB of FLASH program memory (128K x 16) and 18KB of RAM. Connectivity options include CANbus, EBI/EMI, McBSP, SCI, SPI, and UART/USART. It is equipped with 16 channels of 12-bit Analog-to-Digital converters. Peripherals include DMA, POR, PWM, and WDT. The microcontroller is supplied in a 179-NFBGA (12x12) package, suitable for surface mounting. Designed for automotive applications, it is AEC-Q100 qualified. This component is typically utilized in motor control, industrial automation, and power systems.
Additional Information
Series: C2000™ C28x Fixed-PointRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 179-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 150MHz |
| Program Memory Size | 256KB (128K x 16) |
| RAM Size | 18K x 16 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | C28x |
| Data Converters | A/D 16x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.81V ~ 2V |
| Connectivity | CANbus, EBI/EMI, McBSP, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 179-NFBGA (12x12) |
| Grade | Automotive |
| Number of I/O | 56 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
