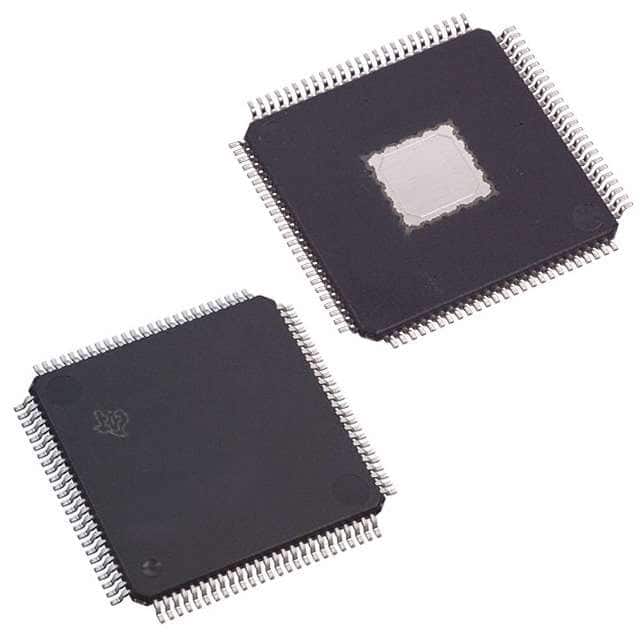

TMS320F28075PTPT
IC MCU 32BIT 512KB FLSH 176HLQFPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
The Texas Instruments TMS320F28075PTPT is a 32-bit C2000 C28x Piccolo microcontroller featuring a single-core C28x processor operating at 120MHz. This device offers 512KB of FLASH program memory (256K x 16) and 50KB of RAM. It includes a comprehensive set of peripherals such as DMA, POR, PWM, and WDT, along with multiple connectivity options including CANbus, I2C, SPI, UART, and USB. The integrated data converters consist of 17x12-bit ADCs and 3x12-bit DACs. Designed for surface mount applications, it is housed in a 176-HLQFP (24x24) package. Operating within a temperature range of -40°C to 105°C, this microcontroller is suitable for demanding applications in industrial automation, automotive, and power systems.
Additional Information
Series: C2000™ C28x Piccolo™, Functional Safety (FuSa)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 176-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 512KB (256K x 16) |
| RAM Size | 50K x 16 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | C28x |
| Data Converters | A/D 17x12b; D/A 3x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 3.47V |
| Connectivity | CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, UART/USART, USB |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 176-HLQFP (24x24) |
| Number of I/O | 97 |
| Programmable | Not Verified |
