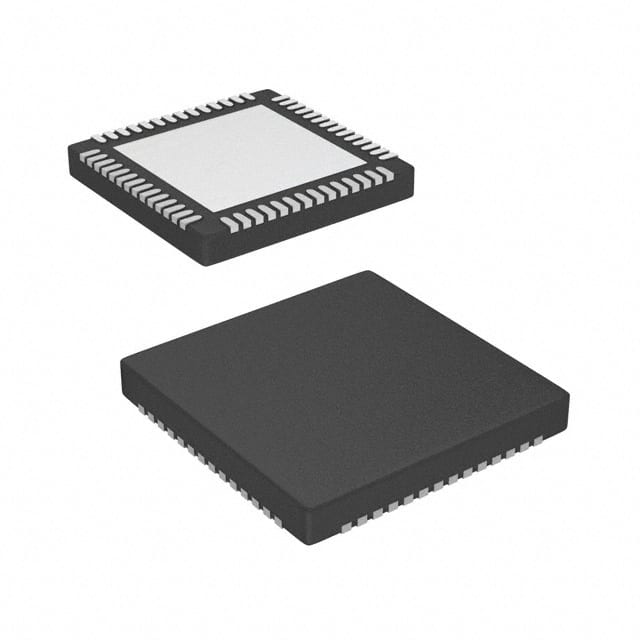

TMS320F28034RSHT
IC MCU 32BIT 128KB FLASH 56VQFNManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
The Texas Instruments TMS320F28034RSHT is a 32-bit microcontroller from the C2000™ C28x Piccolo™ series. This single-core device operates at 60MHz, featuring 128KB (64K x 16) of FLASH program memory and 10KB x 16 of RAM. It offers extensive connectivity options including CANbus, I2C, LINbus, SCI, SPI, and UART/USART. The component includes 26 I/O pins and integrates 13x12-bit A/D converters. Key peripherals for robust control applications include Brown-out Detect/Reset, POR, PWM, and WDT. The TMS320F28034RSHT is housed in a 56-VQFN (7x7) exposed pad package suitable for surface mounting and operates within an ambient temperature range of -40°C to 105°C. Its low operating voltage requirement, 1.71V to 1.995V, makes it suitable for power-sensitive designs in industrial automation and digital power applications.
Additional Information
Series: C2000™ C28x Piccolo™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 56-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 60MHz |
| Program Memory Size | 128KB (64K x 16) |
| RAM Size | 10K x 16 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | C28x |
| Data Converters | A/D 13x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.995V |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 56-VQFN (7x7) |
| Number of I/O | 26 |
| Programmable | Not Verified |
