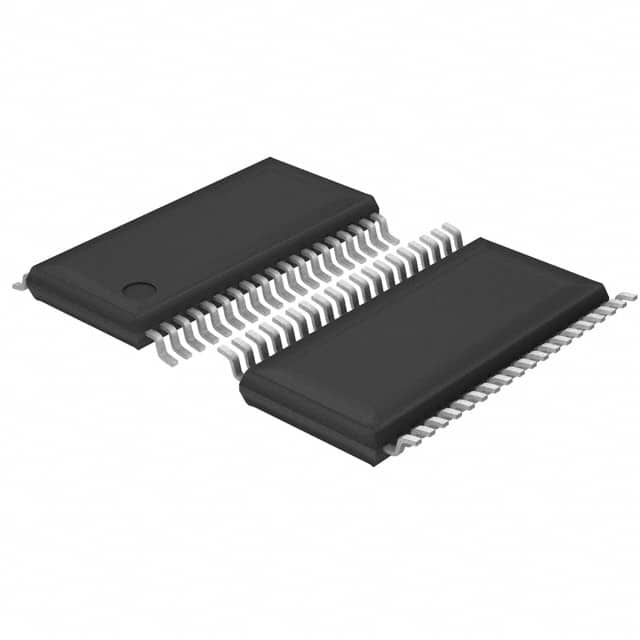

TMS320F28026DAQ
IC MCU 32BIT 32KB FLASH 38TSSOPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments TMS320F28026DAQ, a C2000™ C28x Piccolo™ microcontroller, features a 32-bit C28x single-core processor running at 60MHz. This device offers 32KB of FLASH program memory (16K x 16) and 6KB of RAM (6K x 16). Integrated peripherals include I2C, SCI, SPI, and UART/USART connectivity, along with a brown-out detect/reset, POR, PWM, and WDT. It also incorporates seven 12-bit Analog-to-Digital converters. The TMS320F28026DAQ is supplied in a 38-TSSOP package, suitable for surface mounting, and operates within an automotive temperature range of -40°C to 125°C. Its low voltage supply requirement is 1.71V to 1.995V. This component is AEC-Q100 qualified. It is commonly utilized in automotive and industrial control applications.
Additional Information
Series: C2000™ C28x Piccolo™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-TSSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Speed | 60MHz |
| Program Memory Size | 32KB (16K x 16) |
| RAM Size | 6K x 16 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | C28x |
| Data Converters | A/D 7x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.995V |
| Connectivity | I2C, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 38-TSSOP |
| Grade | Automotive |
| Number of I/O | 20 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
