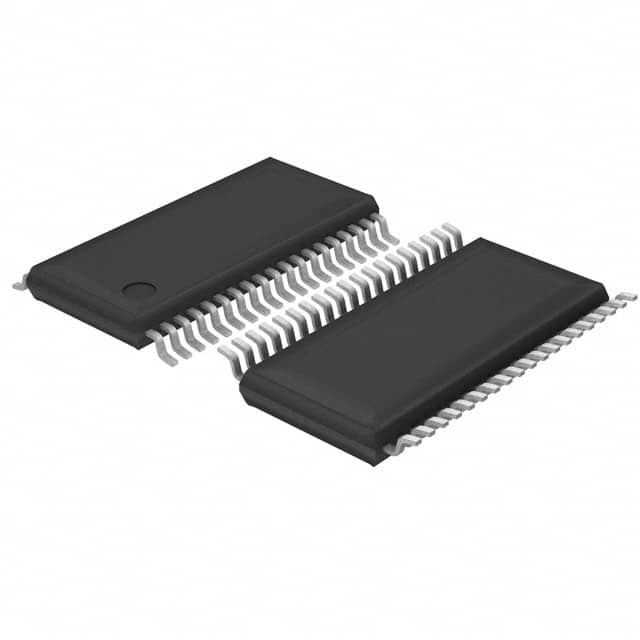

TMS320F28023DAQ
IC MCU 32BIT 64KB FLASH 38TSSOPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments TMS320F28023DAQ is a 32-bit C28x C2000™ C28x Piccolo™ microcontroller featuring a single-core C28x processor operating at 50MHz. This device offers 64KB of FLASH program memory and 6KB of RAM, alongside integrated peripherals including I2C, SCI, SPI, and UART/USART connectivity. It also includes a 7x12-bit Analog-to-Digital converter, Brown-out Detect/Reset, POR, PWM, and WDT functions. The microcontroller is housed in a 38-TSSOP package, designed for surface mounting, and operates within an automotive temperature range of -40°C to 125°C (TA). This component is qualified under AEC-Q100 and is suitable for applications in automotive and industrial control systems.
Additional Information
Series: C2000™ C28x Piccolo™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-TSSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 64KB (32K x 16) |
| RAM Size | 6K x 16 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | C28x |
| Data Converters | A/D 7x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.995V |
| Connectivity | I2C, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 38-TSSOP |
| Grade | Automotive |
| Number of I/O | 20 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
