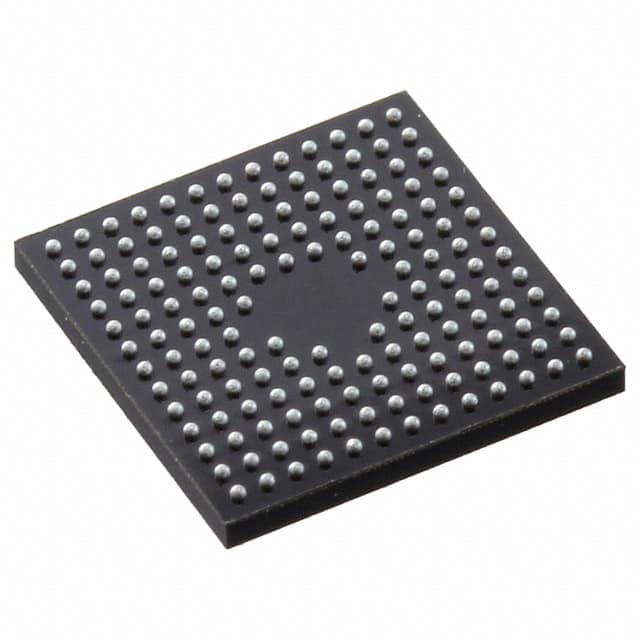

TM4C123GH6ZRBI7
IC MCU 32BIT 256KB FLASH 157BGAManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments Tiva™ C series microcontroller, part number TM4C123GH6ZRBI7. This 32-bit ARM Cortex-M4F core microcontroller operates at 80MHz and features 256KB of FLASH program memory. It includes 32KB of RAM and 2KB of EEPROM. The device offers extensive connectivity options, including CANbus, I2C, SPI, UART/USART, and USB OTG. Integrated peripherals include 24-channel 12-bit ADCs, Brown-out Detect/Reset, DMA, Motion PWM, POR, and WDT. With 120 I/O pins and a 157-BGA Microstar Junior (9x9) package, it is suitable for surface mount applications. The operating temperature range is -40°C to 85°C. This component is widely utilized in industrial automation, automotive, and consumer electronics applications.
Additional Information
Series: Tiva™ CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 157-VFBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | A/D 24x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.08V ~ 3.63V |
| Connectivity | CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT |
| Supplier Device Package | 157-BGA Microstar Junior (9x9) |
| Number of I/O | 120 |
| Programmable | Not Verified |
