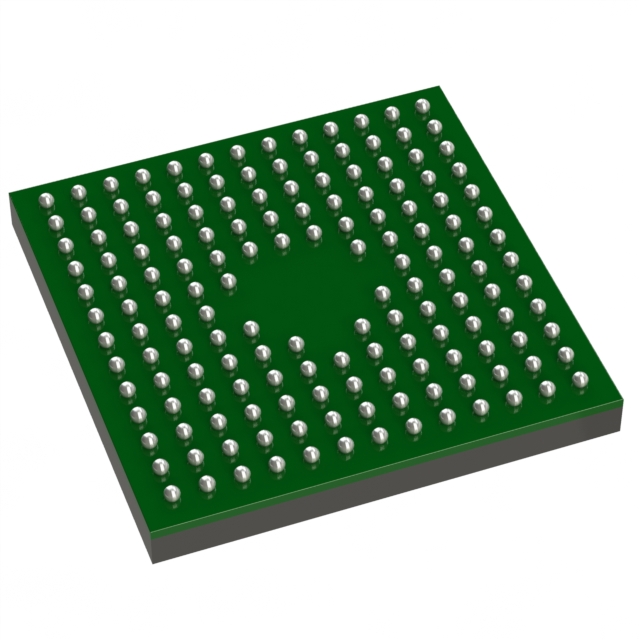

TM4C123GH6NMRT7R
IC MCU 32BIT 256KB FLASH 157BGAManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
ARM® Cortex®-M4F - Microcontroller IC 32-Bit 80MHz 256KB (256K x 8) FLASH 157-NFBGA (9x9)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 157-VFBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | A/D 24x12b SAR |
| Core Size | 32-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 3.63V |
| Connectivity | CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT |
| Supplier Device Package | 157-NFBGA (9x9) |
| Number of I/O | 120 |
Request a Quote
