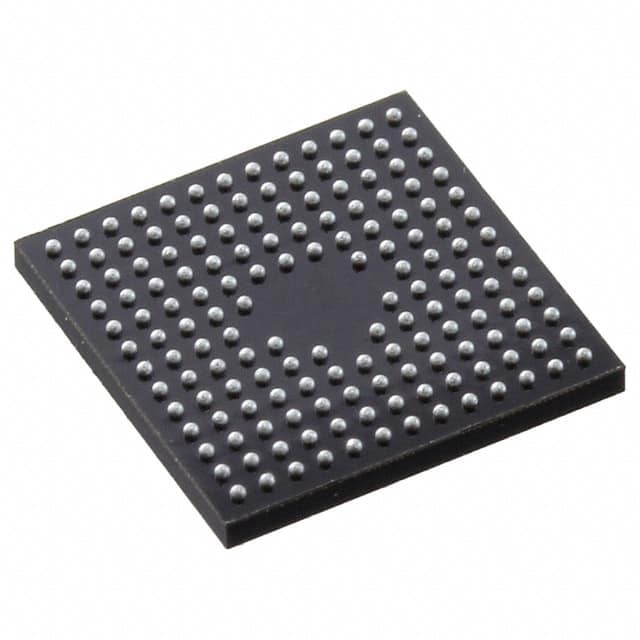

TM4C123BH6ZRBI7R
IC MCU 32BIT 256KB FLASH 157BGAManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments Tiva™ C series microcontroller, part number TM4C123BH6ZRBI7R, features an ARM® Cortex®-M4F core operating at 80MHz. This 32-bit microcontroller offers 256KB of FLASH program memory and 32KB of RAM. Connectivity options include CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, and UART/USART. The device integrates 24 channels of 12-bit Analog-to-Digital conversion. Peripherals include Brown-out Detect/Reset, DMA, Motion PWM, POR, and WDT. The TM4C123BH6ZRBI7R is supplied in a 157-BGA Microstar Junior (9x9) package, designed for surface mounting and delivered on tape and reel. Operating voltage ranges from 1.08V to 3.63V with an operating temperature of -40°C to 85°C. This component is widely utilized in industrial automation, medical devices, and consumer electronics.
Additional Information
Series: Tiva™ CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 157-VFBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | A/D 24x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.08V ~ 3.63V |
| Connectivity | CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT |
| Supplier Device Package | 157-BGA Microstar Junior (9x9) |
| Number of I/O | 120 |
| Programmable | Not Verified |
