SM470R1B1MHFQS
IC MCU 16/32BIT 1MB FLASH 84CFPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments TMS470 Series ARM7® microcontroller, part number SM470R1B1MHFQS. This 16/32-bit MCU features a 60MHz core speed and 1MB of FLASH program memory. It offers 64KB of RAM and includes peripherals such as DMA, POR, PWM, and WDT. Connectivity options include CANbus, I2C, SCI, and SPI. The device is equipped with 12x10-bit A/D converters and 46 I/O lines. Manufactured by Texas Instruments, this surface mount component comes in an 84-CBFQFP exposed pad and tie bar package. Its operating temperature range is -55°C to 220°C. This component is utilized in the automotive and industrial sectors.
Additional Information
Series: TMS470RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |

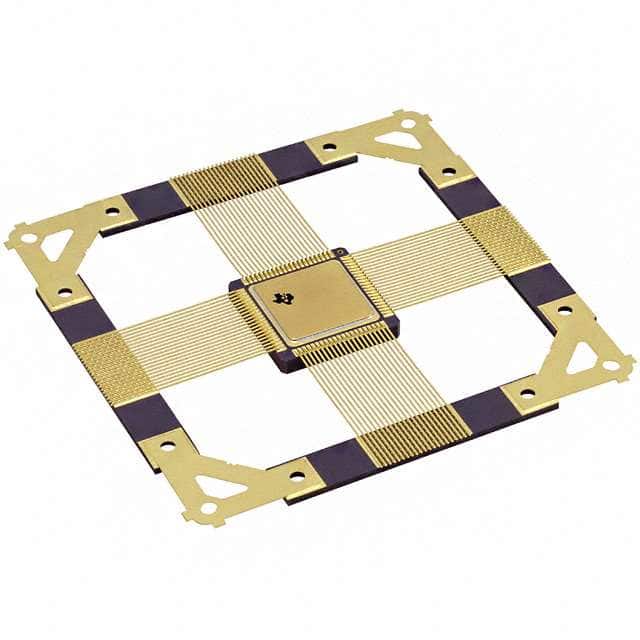

| Package / Case | 84-CBFQFP Exposed Pad and Tie Bar |
| Mounting Type | Surface Mount |
| Speed | 60MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -55°C ~ 220°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM7® |
| Data Converters | A/D 12x10b |
| Core Size | 16/32-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 2.05V |
| Connectivity | CANbus, I2C, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 84-CFP |
| Number of I/O | 46 |
| Programmable | Not Verified |
