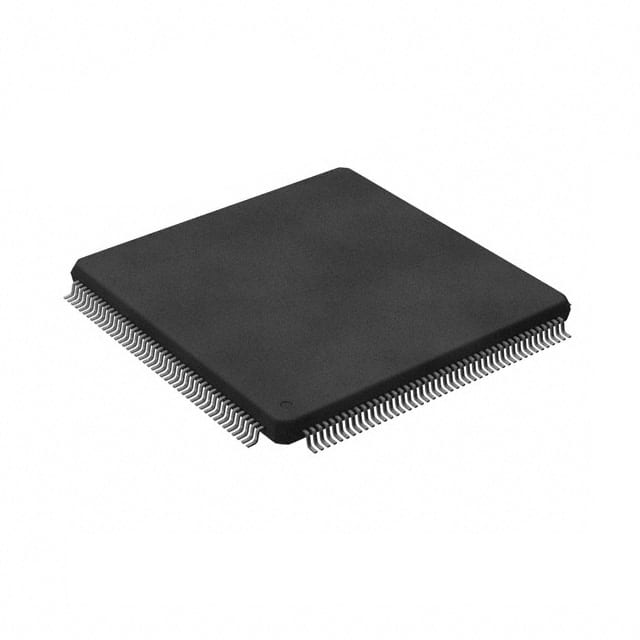

SM320F2812PGFMEPG4
IC MCU 32BIT 256KB FLASH 176LQFPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
The Texas Instruments SM320F2812PGFMEPG4 is a 32-bit C28x C2000™ C28x Fixed-Point microcontroller. This single-core device operates at 150MHz and features 256KB of FLASH program memory, organized as 128K x 16 bits, and 18KB of RAM. Connectivity options include CANbus, EBI/EMI, McBSP, SCI, SPI, and UART/USART interfaces. The device includes a 16-channel, 12-bit Analog-to-Digital converter. Peripherals such as DMA, POR, PWM, and WDT are integrated. The SM320F2812PGFMEPG4 is housed in a 176-LQFP (24x24) surface mount package and operates within a temperature range of -55°C to 125°C. This component is commonly found in industrial automation, motor control, and power systems applications. The supply voltage range is 1.81V to 2V.
Additional Information
Series: C2000™ C28x Fixed-PointRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 150MHz |
| Program Memory Size | 256KB (128K x 16) |
| RAM Size | 18K x 16 |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | C28x |
| Data Converters | A/D 16x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.81V ~ 2V |
| Connectivity | CANbus, EBI/EMI, McBSP, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 56 |
| Programmable | Not Verified |
