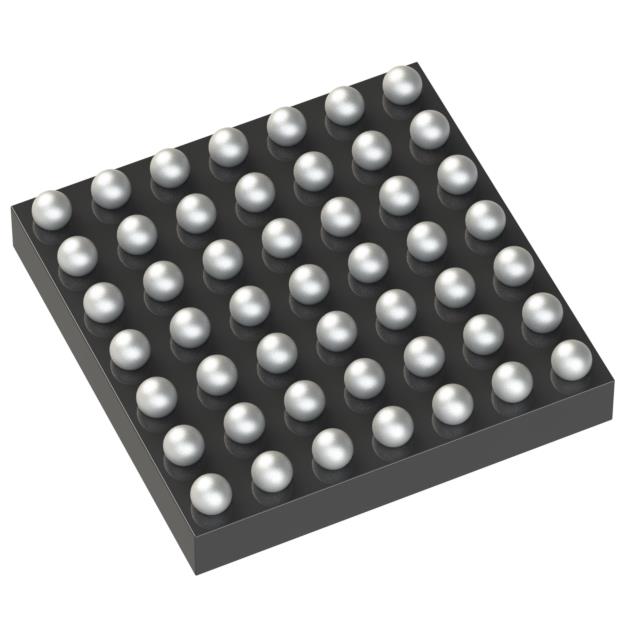

MSP430G2744IYFFT
IC MCU 16BIT 32KB FLASH 49DSBGAManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments MSP430G2744IYFFT is a 16-bit microcontroller based on the MSP430 CPU16 core, operating at 16MHz. This device features 32KB of FLASH program memory and 1KB of RAM. The ample 32 I/O pins support various communication protocols including I2C, IrDA, LINbus, SCI, SPI, and UART/USART. Integrated peripherals include Brown-out Detect/Reset, POR, and WDT. For analog interfacing, the component includes 12x10-bit Analog-to-Digital converters. The MSP430G2744IYFFT is supplied in a compact 49-DSBGA (2.8x2.8) package, requiring surface mounting. Its operating voltage range is 1.8V to 3.6V, with an operating temperature of -40°C to 85°C. This microcontroller is utilized in applications such as industrial automation and consumer electronics.
Additional Information
Series: MSP430G2xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 49-UFBGA, DSBGA |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | MSP430 CPU16 |
| Data Converters | A/D 12x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Supplier Device Package | 49-DSBGA (2.8x2.8) |
| Number of I/O | 32 |
| Programmable | Not Verified |
