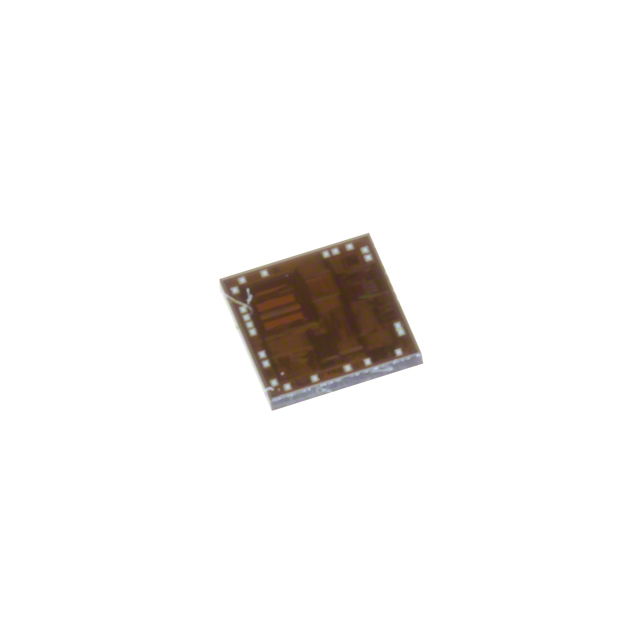

MSP430G2252TDA1
IC MCU 16BIT 2KB FLASH DIEManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments MSP430G2xx series microcontroller, part number MSP430G2252TDA1, offers a 16-bit MSP430 CPU16 core operating at 16MHz. This device features 2KB of FLASH program memory and 256 bytes of RAM. Connectivity options include I2C, SPI, and USI. Integrated peripherals comprise Brown-out Detect/Reset, DMA, POR, PWM, and WDT. It also includes an 8-channel, 10-bit Analog-to-Digital converter. The component operates from 1.8V to 3.6V with an internal oscillator and is supplied as a Die in Bulk packaging. Typical applications include industrial automation and consumer electronics. The operating temperature range is -40°C to 85°C.
Additional Information
Series: MSP430G2xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Die |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 2KB (2K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | MSP430 CPU16 |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, SPI, USI |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | Die |
| Number of I/O | 16 |
| Programmable | Not Verified |
