MSP430G2121IRSA16T
IC MCU 16BIT 1KB FLASH 16QFNManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments MSP430G2xx series microcontroller, part number MSP430G2121IRSA16T, features a 16-bit MSP430 CPU16 core operating at 16MHz. This device offers 1KB of FLASH program memory and 128 bytes of RAM. Connectivity options include I2C and SPI interfaces. Peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. The microcontroller is housed in a 16-QFN (4x4) package, suitable for surface mounting. It operates within a voltage range of 1.8V to 3.6V and is specified for an operating temperature of -40°C to 85°C. This component is commonly utilized in industrial automation and consumer electronics applications. The device is supplied on tape and reel.
Additional Information
Series: MSP430G2xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

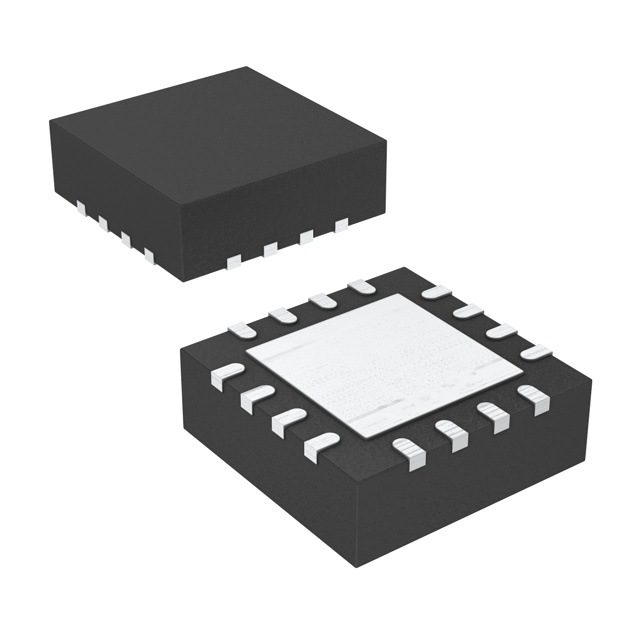

| Package / Case | 16-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 1KB (1K x 8) |
| RAM Size | 128 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | MSP430 CPU16 |
| Data Converters | - |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, SPI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 16-QFN (4x4) |
| Number of I/O | 10 |
| Programmable | Not Verified |
