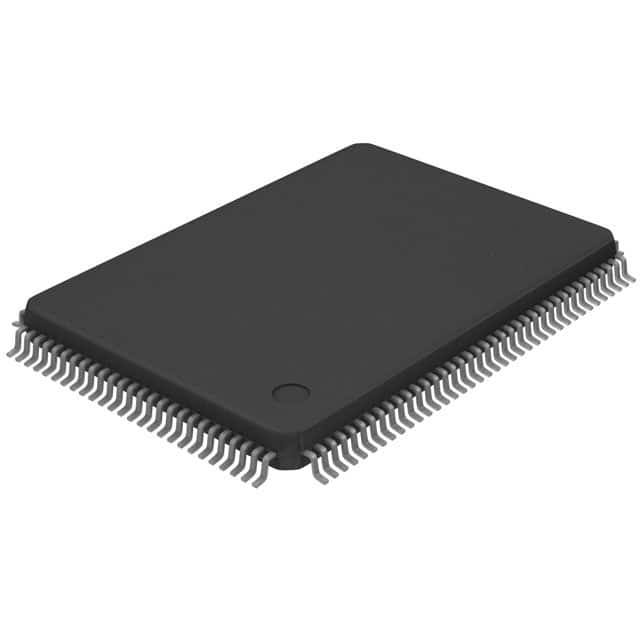

MSP430F67791AIPEUR
IC MCU 16BIT 512KB FLASH 128LQFPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments MSP430F6xx series microcontroller, part number MSP430F67791AIPEUR. This 16-bit device features a 25MHz MSP430 CPUXV2 core with 512KB of FLASH program memory and 32KB of RAM. It offers a comprehensive suite of peripherals including Brown-out Detect/Reset, DMA, LCD controller, POR, PWM, WDT, and seven 24-bit Sigma Delta converters. Connectivity options include I2C, IrDA, LINbus, SPI, and UART/USART. The device integrates an 8x10-bit Analog-to-Digital converter and supports a wide operating voltage range of 1.8V to 3.6V. Supplied in a 128-LQFP package, this component is suitable for applications in industrial automation, smart grid infrastructure, and consumer electronics. The operating temperature range is -40°C to 85°C.
Additional Information
Series: MSP430F6xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 128-LQFP |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | MSP430 CPUXV2 |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT, 7x24b Sigma Delta Converter |
| Supplier Device Package | 128-LQFP (20x14) |
| Number of I/O | 90 |
| Programmable | Not Verified |
