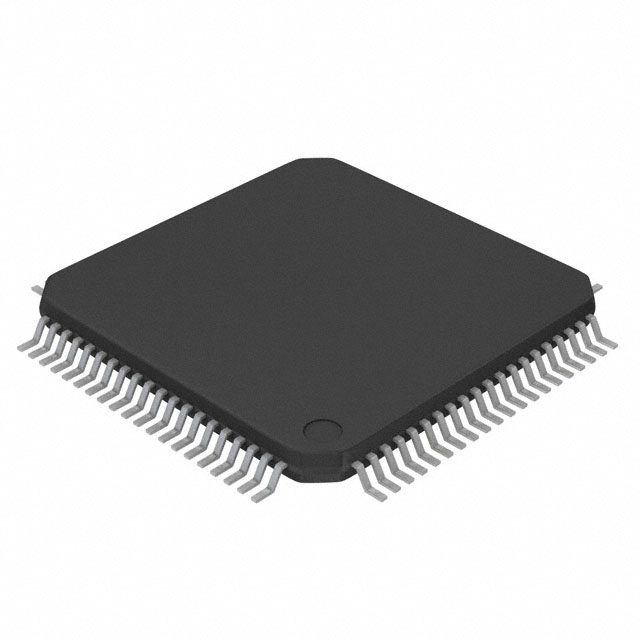

MSP430F6726IPNR
IC MCU 16BIT 128KB FLASH 80LQFPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
The Texas Instruments MSP430F6xx series microcontroller, part number MSP430F6726IPNR, features the 16-bit MSP430 CPUXV2 core operating at up to 25MHz. This device offers 128KB of FLASH program memory and 8KB of RAM. Integrated peripherals include a Brown-out Detect/Reset, DMA, LCD controller, Power-On Reset (POR), PWM, and Watchdog Timer (WDT). The component is equipped with multiple data conversion capabilities, including five 10-bit ADCs and two 24-bit ADCs. Connectivity options are extensive, supporting I2C, IrDA, LINbus, SCI, SPI, and UART/USART interfaces. Designed for surface mounting, it is supplied in an 80-LQFP package. This microcontroller is suitable for applications in energy metering, industrial automation, and consumer electronics. It operates over a temperature range of -40°C to 85°C with a supply voltage of 1.8V to 3.6V. The package is provided in Tape & Reel (TR).
Additional Information
Series: MSP430F6xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 80-LQFP |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | MSP430 CPUXV2 |
| Data Converters | A/D 5x10b, 2x24b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Supplier Device Package | 80-LQFP (12x12) |
| Number of I/O | 52 |
| Programmable | Not Verified |
