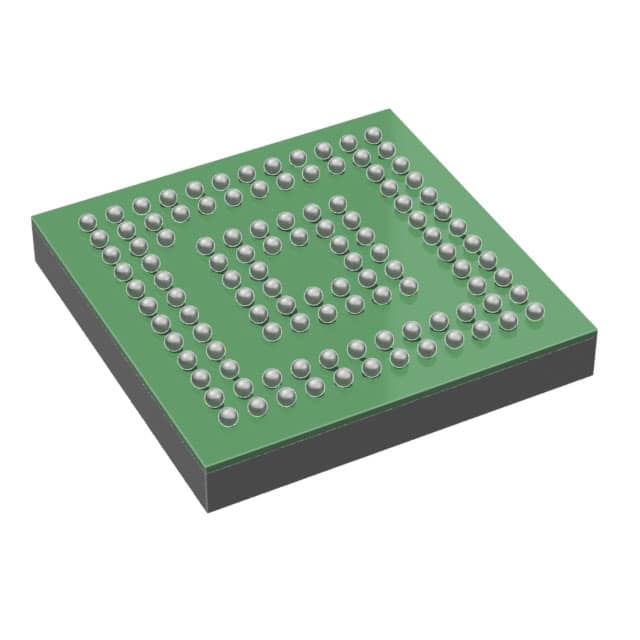

MSP430F5338IZCAT
IC MCU 16BIT 256KB FLSH 113NFBGAManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
MSP430 CPUXV2 MSP430F5xx Microcontroller IC 16-Bit 20MHz 256KB (256K x 8) FLASH 113-NFBGA (7x7)
Additional Information
Series: MSP430F5xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 113-VFBGA |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 18K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | MSP430 CPUXV2 |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 113-NFBGA (7x7) |
| Number of I/O | 74 |
| Programmable | Not Verified |
