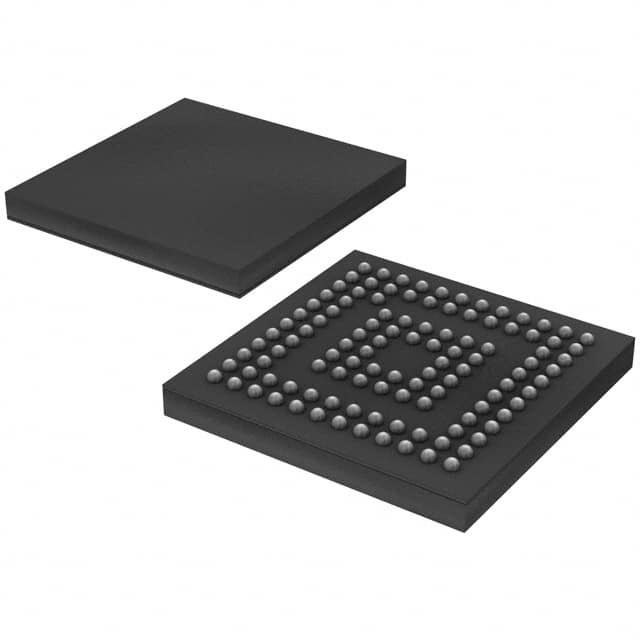

MSP430F478IZQW
IC MCU 16BIT 48KB FLASH 113BGAManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments MSP430x4xx series microcontroller, part number MSP430F478IZQW. This 16-bit ultra-low-power microcontroller features a versatile MSP430 CPU16 core operating at 8MHz. It offers 48KB of FLASH program memory and 2KB of RAM. Integrated peripherals include an LCD controller, multiple timers, a watchdog timer, and brown-out detect/reset capabilities. Data conversion is supported by five 16-bit Analog-to-Digital converters and one 12-bit Digital-to-Analog converter. Connectivity options encompass I2C, IrDA, LINbus, SCI, SPI, and UART/USART. This device is packaged in a 113-BGA Microstar Junior (7x7) for surface mounting and operates within a voltage range of 1.8V to 3.6V across a temperature range of -40°C to 85°C. Applications span industrial, consumer electronics, and data acquisition systems.
Additional Information
Series: MSP430x4xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 113-VFBGA |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 48KB (48K x 8 + 256B) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | MSP430 CPU16 |
| Data Converters | A/D 5x16b; D/A 1x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LCD, PWM, WDT |
| Supplier Device Package | 113-BGA Microstar Junior (7x7) |
| Number of I/O | 48 |
| Programmable | Not Verified |
