LM3S301-EQN20-C2T

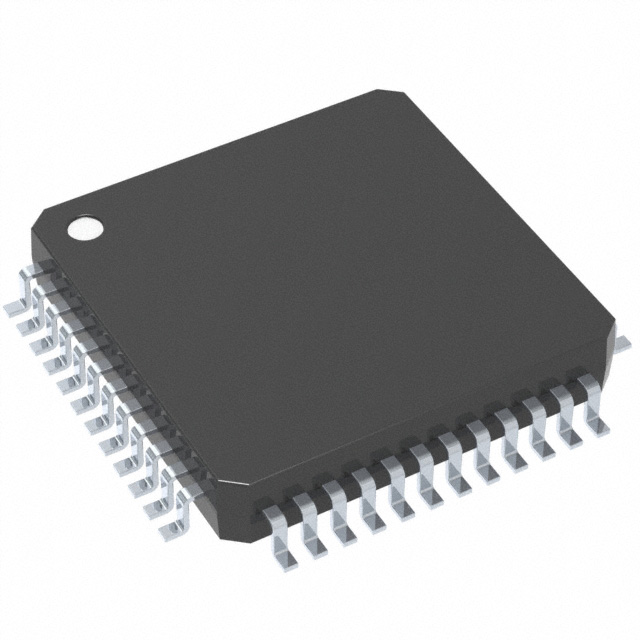

IC MCU 32BIT 16KB FLASH 48LQFPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
The Texas Instruments Stellaris® ARM® Cortex®-M3S 300 series microcontroller, part number LM3S301-EQN20-C2T, is a 32-bit, single-core ARM® Cortex®-M3 processor operating at 20MHz. This device features 16KB of FLASH program memory and 2KB of RAM. Connectivity options include Microwire, SPI, SSI, and UART/USART interfaces. The LM3S301-EQN20-C2T is equipped with a 3x10-bit Analog-to-Digital converter and peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. It offers 33 I/O pins and is housed in a 48-LQFP (7x7) surface mount package. The operating temperature range is -40°C to 105°C (TA), with a supply voltage requirement of 3V to 3.6V. This component is commonly utilized in industrial automation, consumer electronics, and medical devices. It is supplied on tape and reel (TR).
Additional Information
Series: Stellaris® ARM® Cortex®-M3S 300RoHS Status: ROHS3 CompliantManufacturer Lead Time: 46 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 3x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | Microwire, SPI, SSI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 48-LQFP (7x7) |
| Number of I/O | 33 |
| Programmable | Not Verified |
