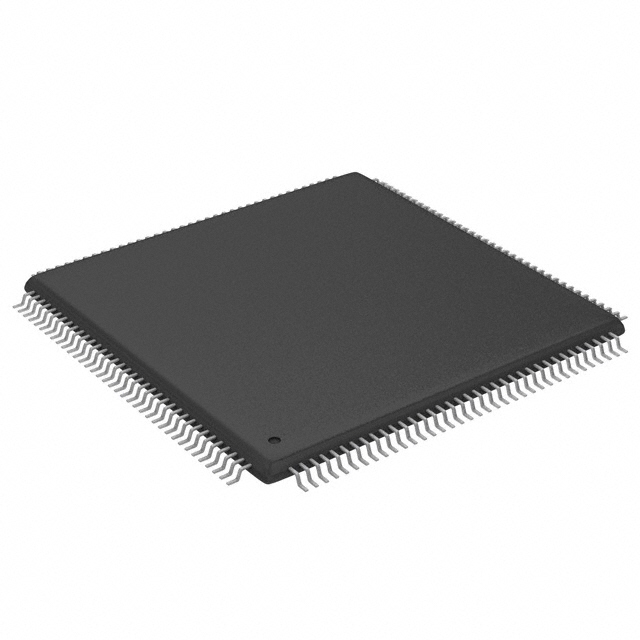

F28M35E50B1RFPQ
IC MCU 32BIT 512KB FLASH 144TQFPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments F28M35E50B1RFPQ is a 32-bit dual-core microcontroller from the C2000™ C28x + ARM® Cortex® M3 Concerto™ series. This device features a C28x and an ARM® Cortex®-M3 core, each operating at 60MHz. It offers 512KB of FLASH program memory for each core, complemented by 72KB of RAM. Connectivity options include CANbus, EBI/EMI, Ethernet, I2C, SPI, SSI, and UART/USART. The microcontroller is equipped with a 20x12-bit Analog-to-Digital converter and peripherals such as Brown-out Detect/Reset, DMA, POR, PWM, and WDT. The F28M35E50B1RFPQ is housed in a 144-HTQFP (20x20) exposed pad package, suitable for surface mounting. It operates across a temperature range of -40°C to 125°C (TA) and supports supply voltages of 1.8V and 3.3V. This component is utilized in industrial automation, motor control, and power systems.
Additional Information
Series: C2000™ C28x + ARM® Cortex® M3 Concerto™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 60MHz/60MHz |
| Program Memory Size | 512KB/512KB |
| RAM Size | 72KB |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | - |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | C28x/ARM® Cortex®-M3 |
| Data Converters | A/D 20x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V, 3.3V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, SPI, SSI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 144-HTQFP (20x20) |
| Number of I/O | 64 |
| Programmable | Not Verified |
