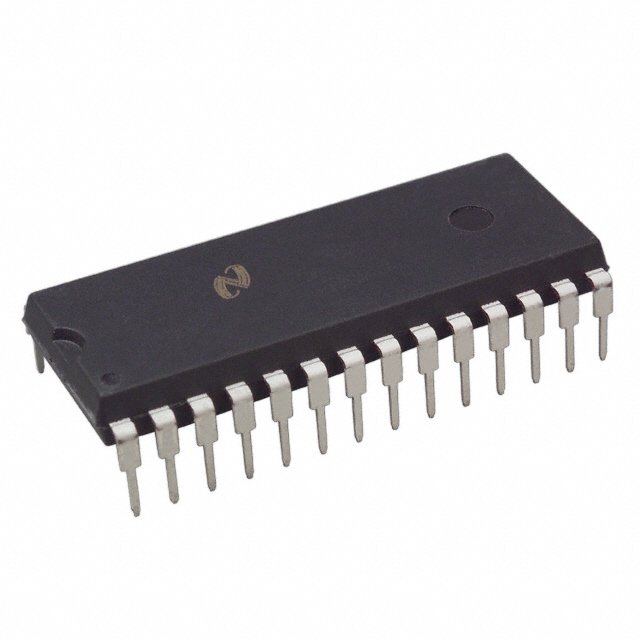

COP8SAC728Q3
IC MCU 8BIT 4KB EPROM/UV 28CDIPManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments COP8™ 8SA series 8-bit microcontroller, part number COP8SAC728Q3, features a 4KB EPROM program memory and 128 x 8 RAM. This device operates at up to 10MHz with an 8-bit core processor. Connectivity includes Microwire/Plus (SPI). Integrated peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The COP8SAC728Q3 is packaged in a 28-CDIP (0.600", 15.24mm) and supports through-hole mounting. It operates within a temperature range of 0°C to 70°C (TA) and requires a supply voltage of 2.7V to 5.5V. This component is suitable for applications in industrial and consumer electronics.
Additional Information
Series: COP8™ 8SARoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-CDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 10MHz |
| Program Memory Size | 4KB (4K x 8) |
| RAM Size | 128 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| Core Processor | COP8 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | Microwire/Plus (SPI) |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 28-CDIP |
| Number of I/O | 24 |
| Programmable | Not Verified |
