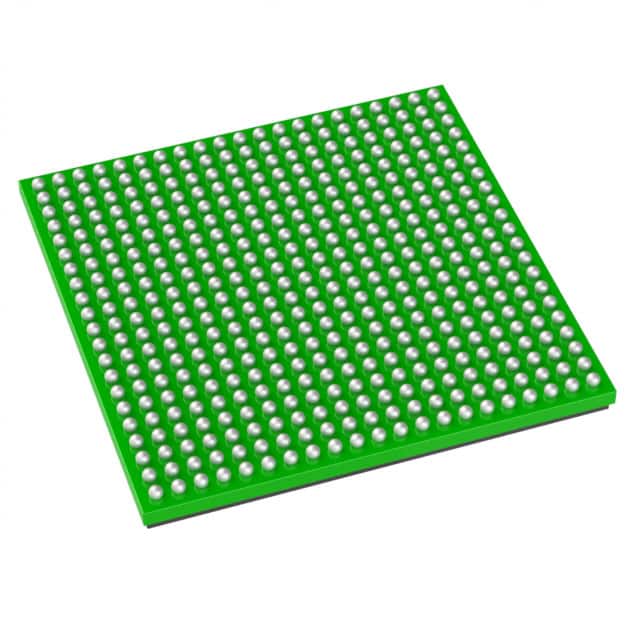

AM2432BSFFHIALVR
IC MCU 32BIT 256KB TCM 441FCBGAManufacturer: Texas Instruments
Categories: Microcontrollers
Quality Control: Learn More
Texas Instruments AM2432BSFFHIALVR is a Sitara™ microcontroller featuring quad-core ARM® Cortex®-M4F and ARM® Cortex®-R5F processors. This 32-bit device operates at speeds of 400MHz and 800MHz and integrates 256KB of Tightly Coupled Memory (TCM). The 441-FCBGA (17.2x17.2) package facilitates surface mounting. Connectivity options include CANbus, Ethernet, I2C, MMC/SDIO, QSPI, SPI, UART/USART, and USB. Integrated peripherals include AES, DMA, POR, PWM, SHA, and WDT. The component also includes 8x12b Analog-to-Digital converters and supports external and internal oscillators. Operating temperature range is -40°C to 125°C (TJ). This microcontroller is suitable for industrial automation, motor control, and communications applications. The device operates with dual voltage supplies: 1.71V to 1.89V and 3.135V to 3.465V. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: Sitara™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 441-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 400MHz, 800MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Oscillator Type | External, Internal |
| Program Memory Type | Tightly Coupled Memory (TCM) |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4F, ARM® Cortex®-R5F |
| Data Converters | A/D 8x12b |
| Core Size | 32-Bit Quad-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.89V, 3.135V ~ 3.465V |
| Connectivity | CANbus, Ethernet, I2C, MMC/SDIO, QSPI, SPI, UART/USART, USB |
| Peripherals | AES, DMA, POR, PWM, SHA, WDT |
| Supplier Device Package | 441-FCBGA (17.2x17.2) |
| Number of I/O | 198 |
| Programmable | Not Verified |
