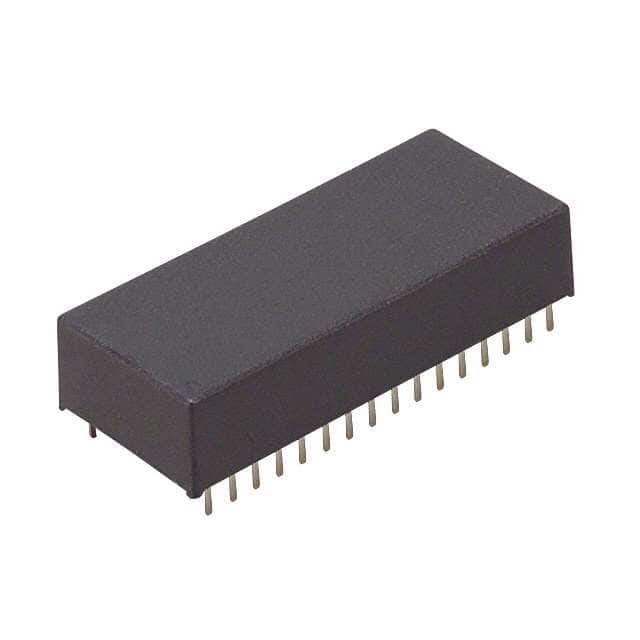

BQ4013YMA-85N
IC NVSRAM 1MBIT PAR 32DIP MODULEManufacturer: Texas Instruments
Categories: Memory
Quality Control: Learn More
Texas Instruments BQ4013YMA-85N is a 1Mbit Non-Volatile SRAM (NVSRAM) memory component featuring a parallel interface and an access time of 85 ns. This device is organized as 128K x 8 bits and operates within a supply voltage range of 4.5V to 5.5V. The BQ4013YMA-85N is housed in a 32-DIP Module package with through-hole mounting and an operating temperature range of -40°C to 85°C. This NVSRAM technology combines the speed of SRAM with the data retention of non-volatile memory, making it suitable for applications requiring fast data writes and guaranteed data persistence in industrial, medical, and telecommunications sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-DIP Module (0.610"", 15.49mm) |
| Mounting Type | Through Hole |
| Memory Size | 1Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 32-DIP Module (18.42x42.8) |
| Write Cycle Time - Word, Page | 85ns |
| Memory Interface | Parallel |
| Access Time | 85 ns |
| Memory Organization | 128K x 8 |
| Programmable | Not Verified |
