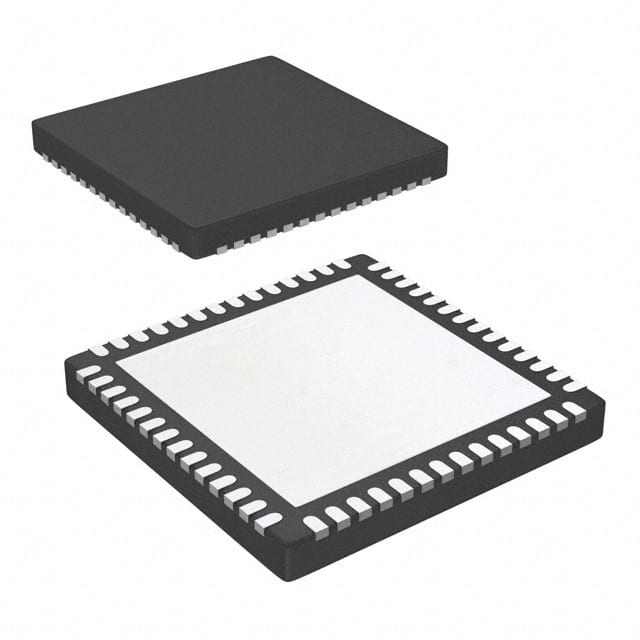

TPS65310AQRVJRQ1
IC REG 5OUT BUCK/BST/LNR 56VQFNManufacturer: Texas Instruments
Categories: Linear + Switching
Quality Control: Learn More
Texas Instruments TPS65310AQRVJRQ1 is a versatile PMIC featuring five integrated voltage regulators. This AEC-Q100 qualified device offers three step-down (buck) converters, one step-up (boost) converter, and one linear (LDO) regulator, operating at a 980kHz switching frequency. The device supports a wide input voltage range from 4.8V to 40V. It includes integrated LED driver functionality and a sequencer, making it suitable for automotive applications. The TPS65310AQRVJRQ1 is supplied in a 56-VQFN (8x8) package with exposed pad, surface-mount mounting type, and is delivered on tape and reel. Its operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.8V ~ 40V |
| Frequency - Switching | 980kHz |
| Topology | Step-Down (Buck) (3), Step-Up (Boost) (1), Linear (LDO) (1) |
| Supplier Device Package | 56-VQFN (8x8) |
| Voltage/Current - Output 1 | Controller |
| Voltage/Current - Output 2 | 0.8V ~ 5.5V, 2A |
| Voltage/Current - Output 3 | 0.8V ~ 5.5V, 2A |
| w/LED Driver | Yes |
| w/Supervisor | No |
| w/Sequencer | Yes |
| Grade | Automotive |
| Number of Outputs | 5 |
| Qualification | AEC-Q100 |
