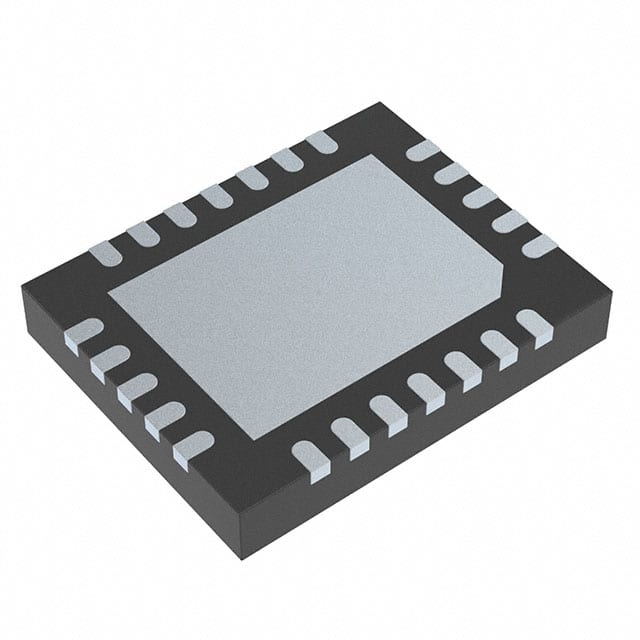

TPS65300QRHFRQ1
IC REG QUAD BUCK/LINEAR 24VQFNManufacturer: Texas Instruments
Categories: Linear + Switching
Quality Control: Learn More
Texas Instruments TPS65300QRHFRQ1 is a Power Management Integrated Circuit (PMIC) featuring a hybrid topology with one 2MHz-3MHz step-down (buck) converter and three linear low-dropout (LDO) regulators. This AEC-Q100 qualified component is designed for automotive applications, operating from 5.6V to 40V supply. It offers four distinct outputs: a 1.2A buck output capable of 5.3V, and three LDO outputs with current ratings of 350mA each, configurable for 5V, 3.3V, and other voltages. The device includes supervisor functionality and is housed in a 24-VFQFN exposed pad package. Its versatile configuration makes it suitable for automotive powertrain, body control, and advanced driver-assistance systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 5.6V ~ 40V |
| Frequency - Switching | 2MHz ~ 3MHz |
| Topology | Step-Down (Buck) (1), Linear (LDO) (3) |
| Supplier Device Package | 24-VQFN (5x4) |
| Voltage/Current - Output 1 | 5.3V, 1.2A |
| Voltage/Current - Output 2 | 5V, 350mA |
| Voltage/Current - Output 3 | 3.3V, 350mA |
| w/LED Driver | No |
| w/Supervisor | Yes |
| w/Sequencer | No |
| Grade | Automotive |
| Number of Outputs | 4 |
| Qualification | AEC-Q100 |
