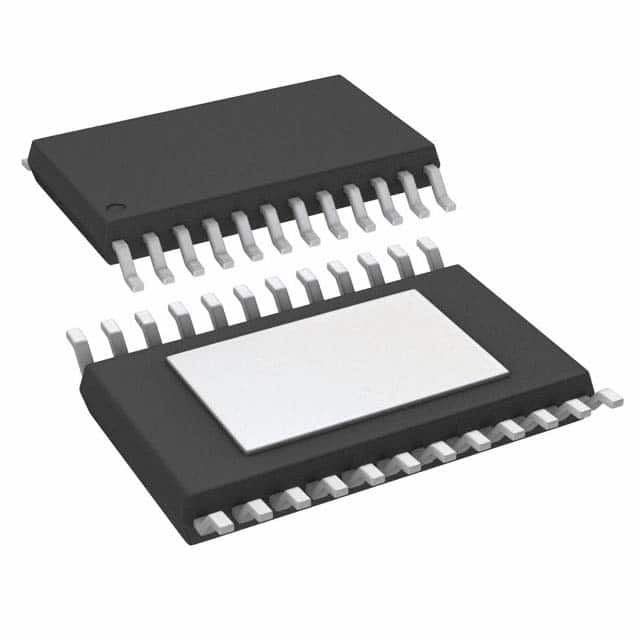

TPS65300QPWPRQ1
IC REG QUAD BUCK/LINEAR 24HTSSOPManufacturer: Texas Instruments
Categories: Linear + Switching
Quality Control: Learn More
The Texas Instruments TPS65300QPWPRQ1 is a power management integrated circuit featuring a quad regulator configuration. This AEC-Q100 qualified component supports a wide input voltage range of 5.6V to 40V. It integrates one 2MHz to 3MHz step-down (buck) converter with a 5.3V, 1.2A output, alongside three linear (LDO) regulators providing 5V at 350mA, 3.3V at 350mA, and an additional unspecified linear output. The device includes a supervisor function and operates within an ambient temperature range of -40°C to 125°C. Packaged in a 24-HTSSOP, this solution is suitable for automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerTSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 5.6V ~ 40V |
| Frequency - Switching | 2MHz ~ 3MHz |
| Topology | Step-Down (Buck) (1), Linear (LDO) (3) |
| Supplier Device Package | 24-HTSSOP |
| Voltage/Current - Output 1 | 5.3V, 1.2A |
| Voltage/Current - Output 2 | 5V, 350mA |
| Voltage/Current - Output 3 | 3.3V, 350mA |
| w/LED Driver | No |
| w/Supervisor | Yes |
| w/Sequencer | No |
| Grade | Automotive |
| Number of Outputs | 4 |
| Qualification | AEC-Q100 |
