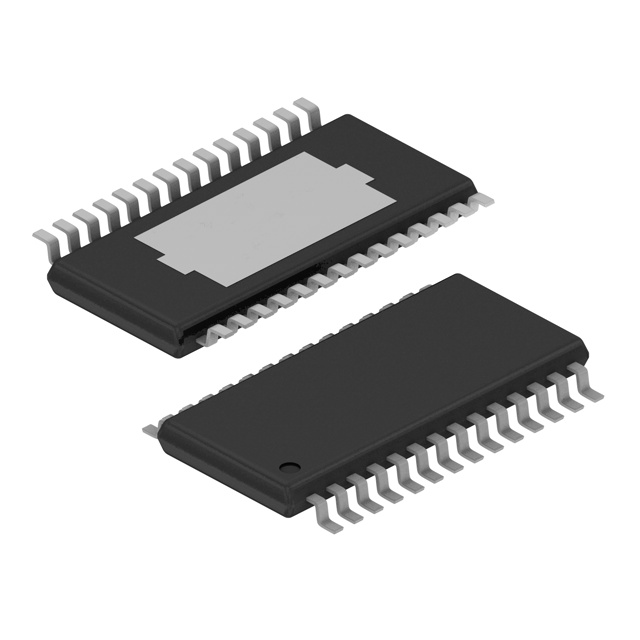

TPS56300PWPR
IC REG DL BUCK/LNR SYNC 28HTSSOPManufacturer: Texas Instruments
Categories: Linear + Switching
Quality Control: Learn More
Texas Instruments TPS56300PWPR is a power management integrated circuit featuring two distinct voltage regulation outputs within a single 28-HTSSOP package. This device integrates a 300kHz synchronous buck converter with a programmable output and a linear regulator. The TPS56300PWPR supports a supply voltage range of 2.8V to 5.5V and is designed for surface mount applications. Its dual-output architecture, combining step-down switching and linear regulation, makes it suitable for applications requiring efficient power delivery and noise-sensitive operation. This component is often utilized in consumer electronics, industrial automation, and communication systems where precise voltage control and power efficiency are critical. The TPS56300PWPR is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-PowerTSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.8V ~ 5.5V |
| Frequency - Switching | 300kHz |
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) |
| Supplier Device Package | 28-HTSSOP |
| Voltage/Current - Output 1 | Controller |
| Voltage/Current - Output 2 | Programmable, 2A |
| Voltage/Current - Output 3 | - |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | Yes |
| Number of Outputs | 2 |
