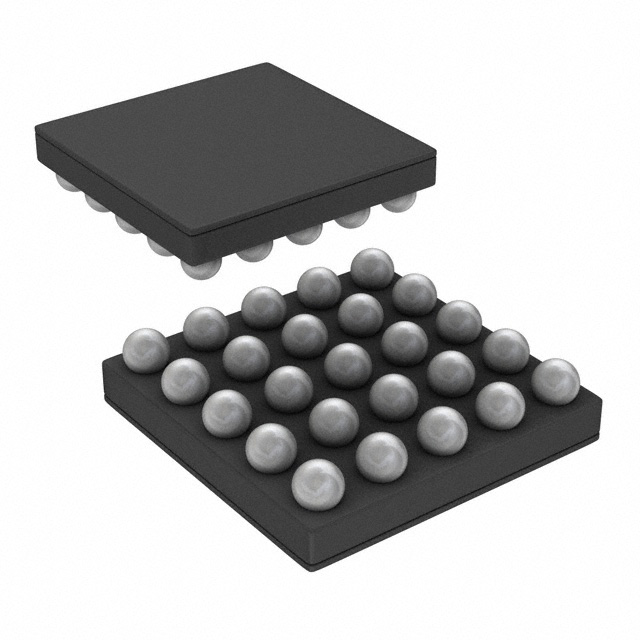

LP3907TL-JSXS/NOPB
IC REG QUAD BUCK/LNR SYNC 25USMDManufacturer: Texas Instruments
Categories: Linear + Switching
Quality Control: Learn More
The Texas Instruments LP3907TL-JSXS-NOPB is a highly integrated power management IC featuring four distinct voltage regulation outputs. This component combines two synchronous step-down (buck) converters with two low-dropout linear (LDO) regulators, offering a versatile solution for power distribution. The buck converters operate at a switching frequency of 2.1MHz, enabling efficient voltage conversion. The device includes a built-in sequencer, facilitating controlled power-up and power-down operations. Designed for surface mounting, it utilizes a 25-uSMD package. The LP3907TL-JSXS-NOPB is suitable for applications requiring precise voltage regulation and power sequencing, commonly found in portable electronics and communication systems. Output 1 provides 1.2V at 1A, Output 2 delivers 2.8V at 600mA, and Output 3 offers 3.3V at 300mA. The supply voltage range is 2.8V to 5.5V, with an operating temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 25-WFBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.8V ~ 5.5V |
| Frequency - Switching | 2.1MHz |
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) |
| Supplier Device Package | 25-uSMD |
| Voltage/Current - Output 1 | 1.2V, 1A |
| Voltage/Current - Output 2 | 2.8V, 600mA |
| Voltage/Current - Output 3 | 3.3V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | Yes |
| Number of Outputs | 4 |
