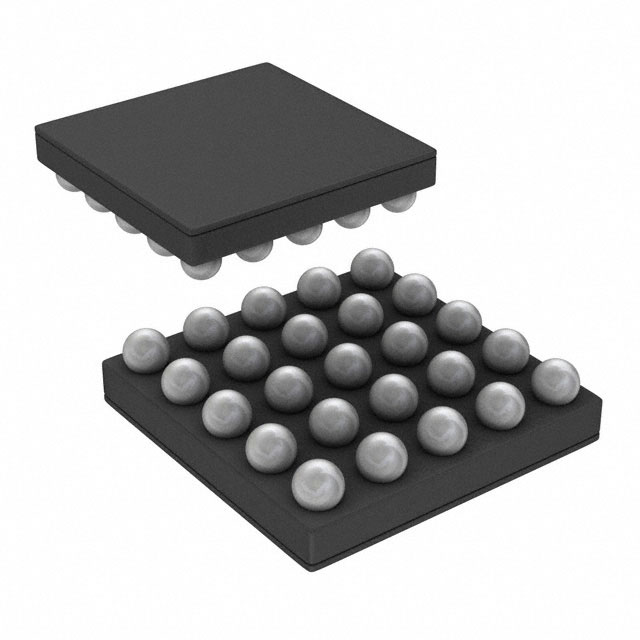

LP3907TL-JJCP/NOPB
IC REG QUAD BUCK/LNR SYNC 25USMDManufacturer: Texas Instruments
Categories: Linear + Switching
Quality Control: Learn More
The Texas Instruments LP3907TL-JJCP-NOPB is a versatile power management integrated circuit featuring four distinct voltage regulation outputs. This component combines two 2.1MHz synchronous buck converters with two low dropout linear regulators (LDOs). The buck converters are capable of delivering 1A and 600mA respectively, while the LDOs provide 300mA and 100mA. The device operates within a 2.8V to 5.5V supply range and includes a power-on reset (Sequencer) function. Packaged in a 25-uSMD (25-WFBGA), this IC is suitable for surface mount applications and operates across a temperature range of -40°C to 85°C. Its flexible architecture makes it ideal for power management solutions in portable electronics, industrial controls, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 25-WFBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.8V ~ 5.5V |
| Frequency - Switching | 2.1MHz |
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) |
| Supplier Device Package | 25-uSMD |
| Voltage/Current - Output 1 | 1.2V, 1A |
| Voltage/Current - Output 2 | 1.8V, 600mA |
| Voltage/Current - Output 3 | 1.2V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | Yes |
| Number of Outputs | 4 |
