V62/06626-03XE
IC REG LIN TPS73618-EP ENHANCEDManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

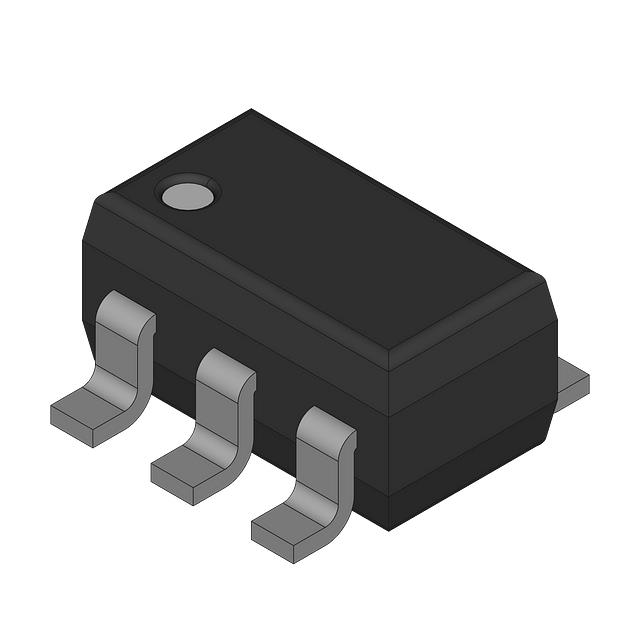

Linear Voltage Regulator IC Positive Fixed 1 Output 400mA SOT-23-5
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 400mA |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 550 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-23-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Control Features | Enable |
| PSRR | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Voltage Dropout (Max) | 0.2V @ 400mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 1 mA |
